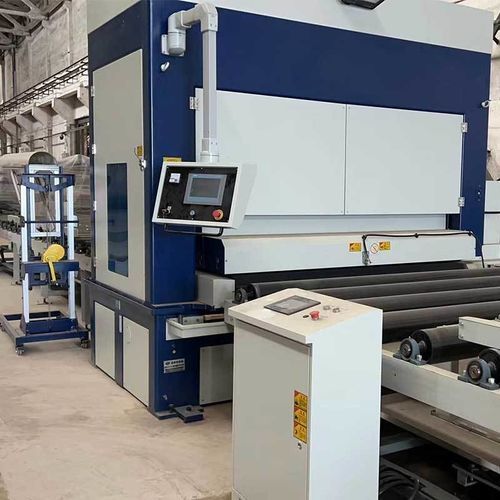

Sheet grinding polishing machine SG2050-WJS

for flat partsaluminumstainless steel

Product Overview
SG2050-WJS is designed for precision grinding to defined thickness and surface finishing of whole sheets or large-scale parts. It processes metals such as titanium, molybdenum, aluminium, stainless steel and carbon steel, providing controlled surface roughness through wet abrasive belt operations.

Working Principle
The machine uses a reciprocating gantry (moving working table) where the workpiece is clamped and fixed. The entire table moves back and forth so the workpiece passes multiple processing stations. Table movement is driven by linear guides and ball screws to ensure high positioning accuracy. Feeding rate is adjustable from 2 to 9 m/min.

Highlights

• Gantry-structured wide abrasive belt heads (1–4 stations) with individual servo-driven vertical lift for precise positioning and thickness adaptation.
• Wet operation with recycled cutting fluid; high-pressure spray nozzles and air knives at the outfeed remove adhered metal dust and improve surface cleaning.
• Integrated automatic cutting fluid filtration unit for continuous recycling and reduced maintenance.

Optional configuration
Partial or full wet vacuum area on the working table to support specific handling or fixturing requirements.

Technical datasheet
Maximum working width: 1000 mm / 1300 mm / 1600 mm / 1900 mm
Minimum working length: 200 mm
Maximum working thickness: 100 mm
Maximum working length: 3000 mm
Working table feeding rate: 2–9 m/min
Working accuracy: ±0.03 mm
No. of work stations: 1–4
Total power: 300 kW
Machine weight: 20000 kgs
Machine dimension: 13500 x 4200 x 2300 mm

Technical specifications

• Model: SG2050-WJS
• Working mode: Reciprocating gantry with clamped workpiece
• Drive components: Linear guide and ball screw drive for working table
• Feeding rate range: 2–9 m/min (adjustable)
• Positioning / accuracy: ±0.03 mm
• Abrasive heads: 1 to 4 wide abrasive belt heads with individual servo-motorized lifting
• Operation: Wet processing with recycled cutting fluid; includes high-pressure spray nozzles and air knives for cleaning
• Filtration: Automatic cutting fluid filtration unit
• Optional: Partial or full wet vacuum area on the working table
• Materials suitable: Titanium, molybdenum, aluminium, stainless steel, carbon steel
• Electrical / power: Total installed power ~300 kW
• Dimensions & weight: 13500 x 4200 x 2300 mm; approx. 20000 kgs
