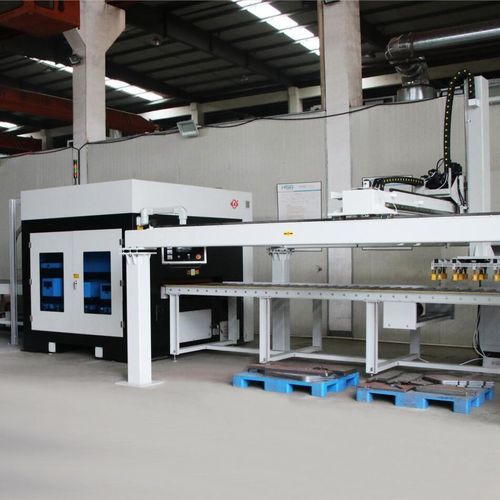

Sheet metal production line

automaticflexible

Product overview
The flexible post-cutting finishing production line is designed for customers processing batch or medium-thickness plate parts. It provides automatic depalletizing and feeding, conveys parts into a slag-removal/deburring machine for fully automatic slag removal and deburring, and at the outlet uses a vision system to capture images, automatically determine workpiece position, and guide a robot to perform precise pick-and-place and accurate palletizing.

Functions and features

• The vision system combined with robotic handling supports multiple feed modes (single-type single-piece, single-type multi-piece, multi-type single-piece, multi-type multi-piece) for stable palletizing and flexible production.
• Multiple vision-robot palletizing units can be expanded in parallel along the conveyor to increase sorting capacity and accommodate a wide variety of parts.
• Optional gantry-style depalletizing and feeding system can pick multiple parts simultaneously to double feeding efficiency; gantry load capacity is customizable up to 1000 kg.
• Robot payload and reach are selectable based on workpiece; single-piece pick cycle can be achieved in under 10 s.
• Automation eliminates manual handling and high-dust grinding tasks, improving labor conditions and the working environment.

Images
(Multiple product images displayed on the page)

Specifications
Line processing width: 1300 mm
Camera field of view: 1300 x 1300 mm
Pixel resolution accuracy: 0.6 mm/pixel
Palletizing accuracy: ±3 mm
Robot cycle: ≤10 s / single workpiece
Gantry load: ≤1000 kg

Technical specifications

• Line processing width: 1300 mm
• Camera field of view: 1300 x 1300 mm
• Pixel resolution accuracy: 0.6 mm/pixel
• Palletizing accuracy: ±3 mm
• Robot cycle: ≤10 s / single workpiece
• Gantry load: ≤1000 kg
