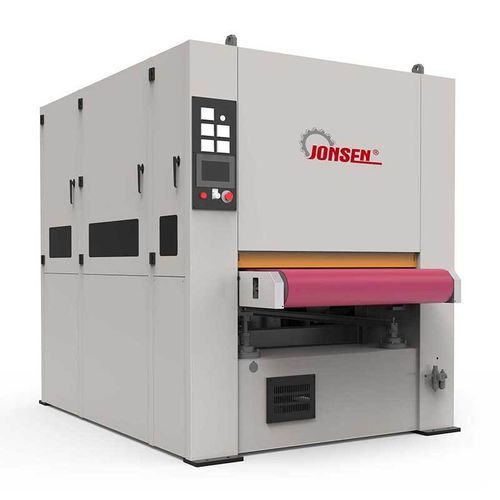

Abrasive belt deburring machine SGPGB1000

pre-deburringedge roundingfinishing

Application
Versatile deburring, edge rounding, surface finishing and polishing machine for metal parts produced by laser cutting, stamping, punching, shearing or waterjet. The unit includes four workstations: wide abrasive belt head, planetary abrasive barrel station, second wide abrasive belt head, and polishing barrel station. Each station can operate independently or in combination for specific processes.
It is designed for batch burr removal, edge blunting, surface polishing and linear graining of laser-cut blanks. The core grinding station supports up to four grinding methods that can be combined to increase processing efficiency.

Highlights

• Welded, sandblasted and powder-coated main frame
• First wide abrasive belt head for primary burr removal; planetary abrasive barrel station for further deburring and edge rounding; second wide abrasive belt head for restoring straight-line graining (No.4 finish); polishing barrel for final smoothing
• Full-width vacuum conveyor allows handling of small parts. Optional full-width magnetic conveyor for ferrous parts
• Planetary abrasive barrel station targets edges, corners and holes with minimal contact on flat surfaces, allowing processing of sheets protected by vinyl laser film without damaging the finish
• User-friendly touchscreen interface with integrated LED inspection light
• Optional dust collector and vacuum generator can be integrated into the machine base and top frame to save floor space

TECHNICAL DATASHEET
Maximum working width: 1000 mm
Machine opening: 0-50 mm
Conveyor feeding rate: 0.8-5 m/min
Abrasive media: abrasive barrel, wide abrasive belt, polishing barrel
Number of workstations: 4
Weight: 3000-4000 kg

Technical specifications

• Model: SGPGB1000
• Maximum working width: 1000 mm
• Machine opening: 0-50 mm
• Conveyor feeding rate: 0.8-5 m/min
• Abrasive media: abrasive barrel, wide abrasive belt, polishing barrel
• Number of workstations: 4
• Weight: 3000-4000 kg
