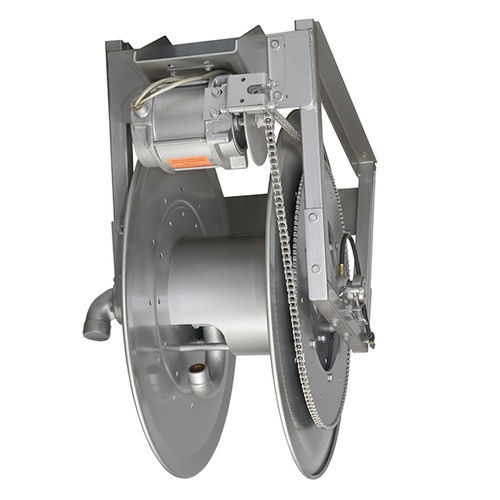

Hose reel IV Seriesmotorizedfor fuelfixed
Add to favorites
Compare this product
Characteristics
- Type
- hose
- Drive mechanism
- motorized
- Applications
- for fuel
- Configuration
- fixed
- Reel material
- stainless steel, aluminum
- Other characteristics
- rugged, custom-made
- Hose/cable length
Max.: 76 m
(249'04" )Min.: 21 m
(68'10" )
Description
Power Rewind Reels for Inverted Installation
To handle single 1-1/4" I.D. through 2" I.D. hose
- Chain and sprocket drive powered by electric, hydraulic, or compressed air motor.
- Comet brake, air caliper brake, standard.
- Standard inlet: 90° ball bearing swivel joint with 1-1/2" female NPT and 2" groove.
- Optional 2" internals also available.
- Standard outlet: Flanged riser with 1-1/2" female NPT threads.
- Inlet, riser and hub assembly are steel.
- Stainless steel or aluminum available consult factory.
- Optional auto chain tensioner available consult factory.
- Pressures to 600 psi (41 bar).
- Temperatures from -30° F to +250° F (-34° C to +121° C).
- Consult factory for other pressures and temperatures.
