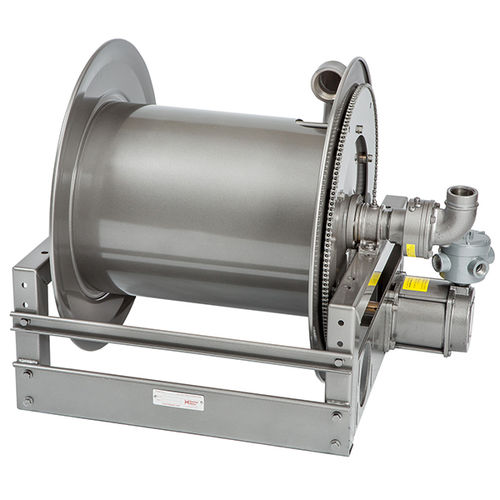

Hose reel 2" Seriesmanualmotorizedfor compressed air
Add to favorites
Compare this product
Characteristics
- Type
- hose
- Drive mechanism
- manual, motorized
- Applications
- for compressed air, for fuel
- Configuration
- fixed
- Reel material
- stainless steel, aluminum
- Other characteristics
- rugged, custom-made
- Hose/cable length
Max.: 106 m
(347'09" )Min.: 15 m
(49'02" )
Description
Manual or Power Rewind Reels
To handle single 1-1/2" or 2" I.D. hose
- Gear-driven crank rewind or chain and sprocket drive powered by an electric, hydraulic, or compressed air motor
- Optional auxiliary crank rewind for power rewind reels
- Choose EP or EPJ option
- Comet brake on power rewind without auxiliary crank
- Standard inlet: 90° ball bearing swivel joint with 2" Victaulic®
- Standard outlet: Flanged riser with 2" female NPT threads
- Other sizes and/or threads can be furnished and must be specified
- Standard: inlet, outlet riser, and hub assembly are steel. Options: also available in aluminum or stainless steel
- Rollers and roller mounting brackets are accessories
- Pressures to 600 psi (41 bar)
- Temperatures from -30° F to +255° F (-34° C to +121° C)
- Consult factory for other pressures and temperatures
