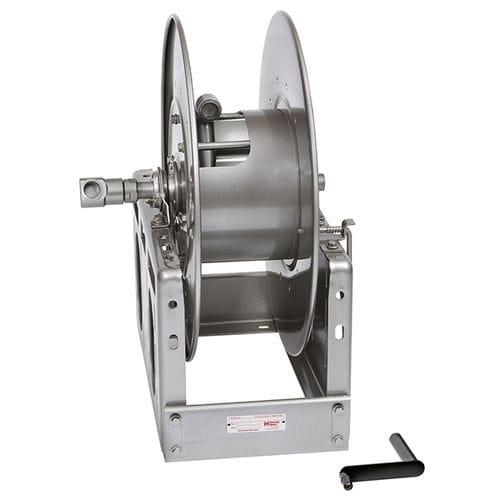

Hose reel 3000 Serieshand crankfixedfor water
Add to favorites
Compare this product
Characteristics
- Type
- hose
- Drive mechanism
- hand crank
- Configuration
- fixed
- Applications
- for water, for air, for fuel, for food industry applications, for fire protection
- Reel material
- stainless steel, aluminum
- Other characteristics
- rugged
- Hose/cable length
Min.: 22 m
(72'02" )Max.: 83 m
(272'03" )
Description
To handle 3/4" or 1" I.D. hose
Fuel Dispensing / Spray Operations / Fire Protection
- Economical manual rewind reels for long lengths of hose
- Choose disc rewind or removable direct crank rewind
- Supplied with spring-actuated pin lock
- Standard inlet: 90° ball bearing swivel joint, 1" female NPT threads
- Standard outlet: 1" female NPT thread
- Standard: inlet, outlet riser, and hub assembly are steel. Options: swivel joint also available in aluminum or stainless steel, riser and hub assembly also available in stainless steel
- Rollers and roller mounting brackets are accessory items. Specify roller position
- Standard pressures to 2,000 psi (138 bar), available up to 4,000 psi (276 bar) – must specify
- Temperatures from -60° F to +250° F (-51° C to +121° C)
- Consult factory for other pressures and temperatures
