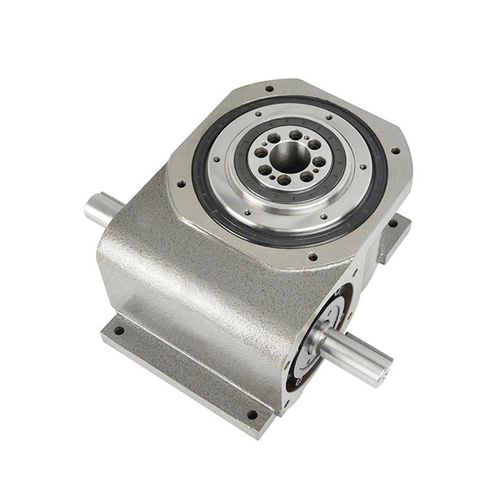

Intermittent indexer 70DA

cam

The 70DA Ultra-thin Table Model Multiple Stations Cam Indexer is a high-precision intermittent transmission mechanism, which is widely used in automation equipment and industrial machinery to achieve the conversion from continuous motion to intermittent motion. What is Multiple Stations Cam Indexer? The 70DA Ultra-thin Table Model Multiple Stations Cam Indexer is a high-precision intermittent transmission mechanism. Widely used in automation equipment and industrial machinery to accomplish the conversion from continuous motion to intermittent motion. Components of the 70DA Ultra-thin Table Model Multiple Stations Cam Indexer Key: Cam A specifically formed rotating component that turns constant rotational motion into the necessary indexing motion. Follower A part travelling over the cam surface transforming the cam's motion into output motion. Index Plate A fixed component guaranteeing exact output shaft locking and placement throughout every indexing cycle. Drive Mechanism Usually running on a motor, gearbox, or other power transmission component, a system offers constant rotational input motion to the cam. What are the characters of multiple stations cam indexer? Double flange design The robust and safe installation platform made by the twin flange design guarantees that the indexer is securely fixed throughout operation. Furthermore improving the system's stiffness and accuracy is this design. Good high-speed performance The cam indexer is designed for high-speed running, fit for quick cyclic motions. Its seamless running guarantees little vibration and wear, which over time serves to extend system lifetime and performance.
