Intermittent indexer DF series

cam

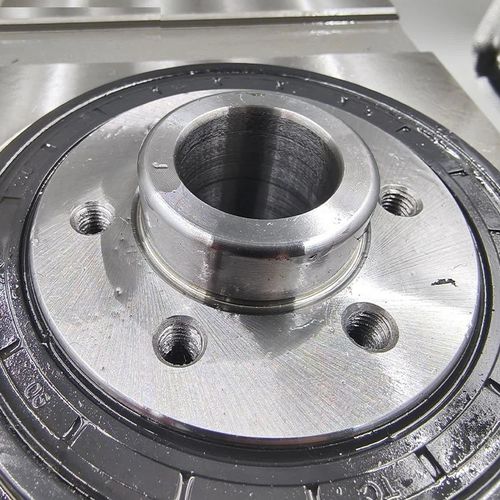

The dimensions and functions of this model are identical to those of the DF series, with the exception that the output shaft is hollow. Suitable for medium and high-speed multi-station turntable machine, intermittent, swing or continuous mechanical action, the drive motor can choose gear motor, the same service or stepping motor. What is a Flange Hollow Type Cam Indexer Designed especially to allow other components to pass or organize pipelines, air pipes, etc. through its central axis, the flange hollow cam indexer is a particularly made indexer with a hollow structure inside. Usually related with motors, gearboxes, etc., it provides exact indexing, power transmission, or mechanical movement control. Widely utilized in automaton equipment, packaging machinery, conveying systems, and other sectors, its flange structure makes installation more practical and sturdy. The hollow shape helps the equipment to integrate different purposes and boosts its versatility and application range. The hollow flange design enables the use of hollow holes in the shaft, which allows for pneumatic, hydraulic, and electrical piping, enhancing aesthetics and saving space. Additionally, it can accommodate automatic peripheral systems or feeding equipment. The cam indexer machining process includes steps such as material selection, rough machining on CNC lathes, heat treatment and hardening, precision grinding, cam contour machining, bearing assembly, and quality inspection to ensure high precision and durability
