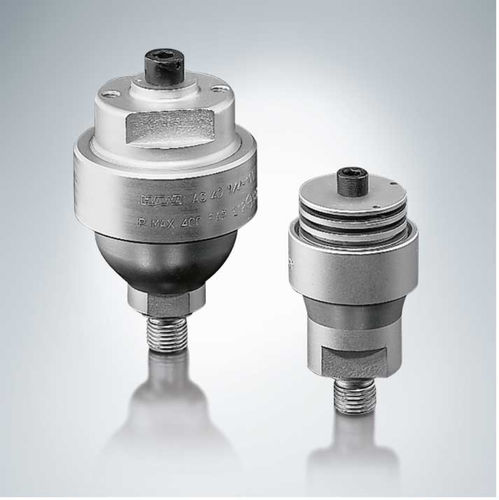

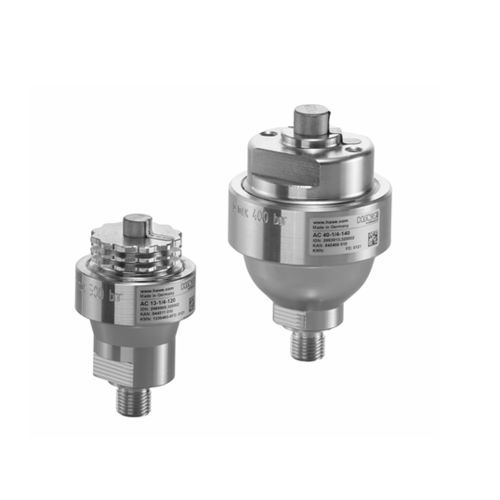

Diaphragm hydraulic accumulator AC series
screwcompactAC

diaphragm hydraulic accumulator
diaphragm hydraulic accumulator
Add to favorites
Compare this product


Characteristics

Technology
diaphragm, screw
Other characteristics
compact, AC, miniature

Description

Diaphragm accumulators are a type of hydraulic accumulator. A diaphragm separates the compressible gas cushion from the hydraulic fluid. The diaphragm accumulator type AC is used as a source of pressurized oil. It supports or increases the pump delivery flow or stores pressure energy, e.g. for an accumulator charge circuit. The type AC is available as a miniature hydraulic accumulator. It is particularly suitable for usage in clamping hydraulics. It is used there to compensate for volume changes in the event of temperature fluctuations, to cover any leakage losses or to dampen oscillations. With the aid of different fittings the hydraulic accumulator type AC can be integrated into a hydraulic system. Different installation orientations and installation positions are possible. Features and benefits: •Compact design •Option of integration into the HAWE modular system •Operating pressures up to 500 bar Intended applications: •Clamping systems •Jigs •Accumulator charging systems
