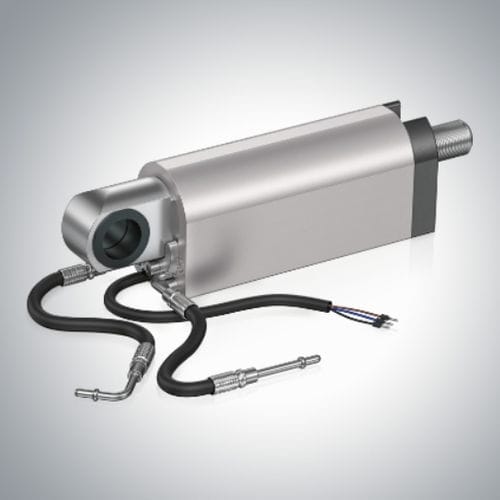

Hydraulic cylinder LAS

differentialaluminumfor vehicles

Product description
The differential cylinder type LVM, LAS is designed for a traversing speed up to 0.1 m/s and, thanks to its high-quality seal system, can remain in position for extended periods. When operated correctly it is capable of performing at least 100,000 double strokes. For special applications, the differential cylinder type LVM, LAS can be equipped with customer-specific sealing elements and manufactured to customer-specific stroke lengths. Thanks to its short and compact aluminium design, it is ideally suited to mini-hydraulic solutions from the HAWE Hydraulik product range.

Features and advantages

• Lower weight due to aluminium design
• Piston diameters: 20, 25, 32 and 42 mm
• Stroke: 50 to 300 mm (depending on size)
• Technically leak-proof internally and externally for prolonged holding
• Optional displacement measuring system (HISENS)
• Various mechanical fasteners available (optional)
• Multiple corrosion protection options (optional)
• Special wiper for marine growth available (optional)

Intended applications

• Trim, steering and tilt drives for boats and jet skis in freshwater and seawater environments
• Trim-tab drives for boats and jet skis in freshwater and seawater environments
• Drives for convenience functions on boats in freshwater and seawater environments
• Automotive applications: window lifters, ride height adjustment and aerodynamic improvements in HGVs
• Seat adjustment drives for aircraft
• Applications in commercial vehicles

Technical specifications

• Type: Differential cylinder (type LVM, LAS)
• Maximum traversing speed: up to 0.1 m/s
• Durability: at least 100,000 double strokes when operated correctly
• Piston diameters: 20, 25, 32, 42 mm
• Stroke lengths: 50 to 300 mm (depending on size); customer-specific stroke lengths possible
• Design/material: aluminium design for reduced weight
• Sealing: high-quality seal system; technically leak-proof internally and externally for extended holding
• Measurement option: with or without displacement measuring system (HISENS)
• Options: variety of mechanical fasteners; various corrosion protection methods; special wiper for marine growth
• Customization: customer-specific sealing elements available
• Application scope: suited to mini-hydraulic solutions, including HAWE Hydraulik product range
