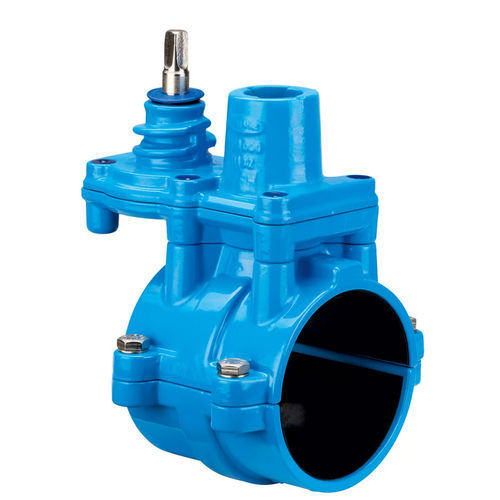

Tube saddle 2305

tapped

Robust and simple construction In open position: clear, unobstructed waterway Working parts not in contact with water Just half a turn to open or Close ZAK: The threadless, restraint jointing system for the service connections made of ductile iron, epoxy powder coated Integrated on pipe saddles, service valves and Fittings Operating pressure PN 16 Simple installation: Push into socket - rotate for 90° - pull out - fit the snap ring ZAK socket d 34 max. drilling Ø 25 ISO push-fit for PE pipes Ø 20 - Ø 50 according to EN 12201 and DIN 8074 | up to PN 16. Suitable up to 30° C medium temperature ZAK socket d 46 max. drilling Ø 35 ISO push-fit for PE pipes Ø 32 - Ø 63 according to EN 12201 and DIN 8074 | up to PN 16. Suitable up to 30° C medium temperature ZAK socket d 69 max. drilling Ø 40/50 ISO push-fit for PE pipes Ø 50 - Ø 63 according to EN 12201 and DIN 8074 | up to PN 16. Suitable up to 30° C medium temperature
