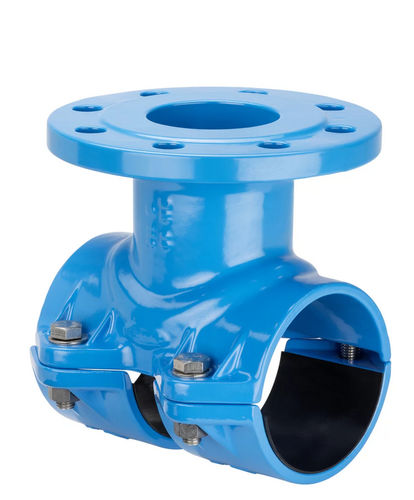

Tube saddle 5230

tapped

For PE pipes according to EN 12201 and DIN 8074 (SDR 7,4 and SDR 11) for PVC pipes according to EN ISO 1452-2 (SDR 13,5 and SDR 21) Solid construction of ductile iron epoxy powder coated No deformation of the pipe The drilled hole is sealed by an O-ring inserted in the upper part of saddle The rubber linings are bonded to the lower part of saddle - this ensures positive positioning of saddle (only for d 110 to 315) For holes from d 355 to 630 pipes, special drilling machine is available from Hawle Flange sized and drilled according to EN 1092-2 | PN 16 other standards on request For PE pipes with protective layer, this must be removed prior to mounting the saddle
