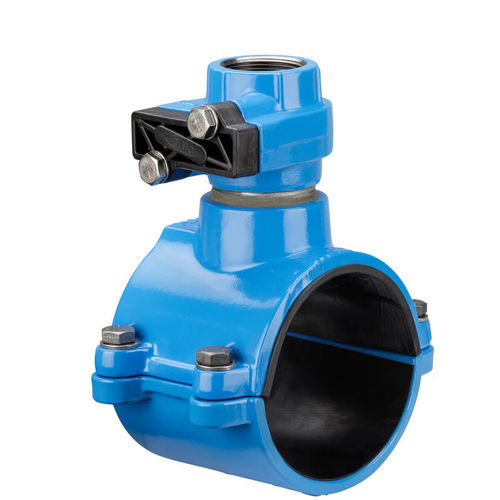

Tube saddle 5210

tapped

For PE pipes according to EN 12201 and DIN 8074 and PVC pipes according to EN ISO 1452-2 The HAKU seal is in full contact with the entire diameter of the PE or PVC pipe and is glued onto the saddle for ease of assembly Several concentric seals with increasing diameter surround the outlet, relieving pressure exerted upon the drill hole and protects it from Deformation The protective layer on PE pipes should be removed prior to mounting the saddle for drilling without pressure Drilling under pressure with the shut-off system that has been tried and tested for decades This shut-off adapter can be used for under pressure Drilling with every type of standard saddle Note: The external thread is one size larger than the internal threaded outlet, except on the 2 "size, this to provide greater strenght Cover shut-offs with internal thread are fitted with a corrosion protection ring to prevent corrosion and incrustation All external threads must be protected according to Standard occupational procedure
