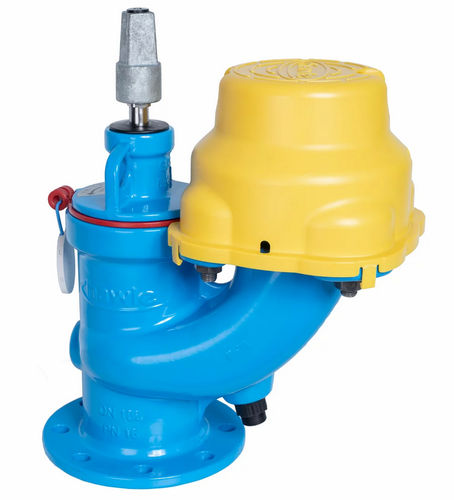

100mm hydrant 5025

Automatic drainage system (maintainable) Rudget, but weight and flow optimized design Opening for the use of slings Enough space for bolts assembling 100% corrosion protected Excellent spindle bearing for many openings / closings (no blank areas). Large thread engagement of the spindle even in maximum closed position Minimal torque for operation (MOT 260 Nm) Vibration free plug guide with plastic slides. 15 turns to open position Screwless connection of the bonnet Particularly suitable for pigging, by simply disassambling the bonnet, the cleaning pig can be inserted vertically All internal parts made of corrosion-resistant material and can be removed upwards without uninstall the hydrant aCover cap with non-slip tread surface - easy to remove also from outside Standards Residual water zero < EN 1074-6; draining time < 10 min. Flange sized and drilled according to EN 1092-2 / PN 16 Outlets: Claw DN80, Nor Standard 2 ½”, Storz B (2 ½”) or A (4”), other couplings of different national standards on request Rate of flow: Q (m3/h) at a differential pressure of 1 bar is higher than requested by EN14339 Kv[m3/h] Resistance to disinfectants according to EN 1074-1
