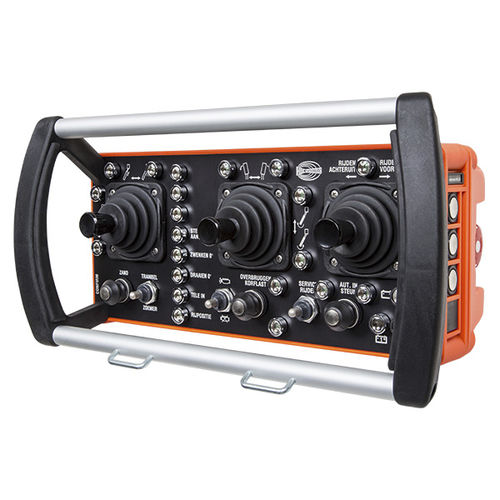

Radio control spectrum 3
joystickwith toggle switchrotary switch

Radio control - spectrum 3 - HBC-radiomatic - joystick / with toggle switch / rotary switch
Radio control - spectrum 3 - HBC-radiomatic - joystick / with toggle switch / rotary switch
Radio control - spectrum 3 - HBC-radiomatic - joystick / with toggle switch / rotary switch - image - 2
Radio control - spectrum 3 - HBC-radiomatic - joystick / with toggle switch / rotary switch - image - 3
Radio control - spectrum 3 - HBC-radiomatic - joystick / with toggle switch / rotary switch - image - 4
Radio control - spectrum 3 - HBC-radiomatic - joystick / with toggle switch / rotary switch - image - 5
Radio control - spectrum 3 - HBC-radiomatic - joystick / with toggle switch / rotary switch - image - 6
Add to favorites
Compare this product

Characteristics

Type
radio
Control interface
joystick, with toggle switch, rotary switch
Product applications
industrial, for cranes, for lifting equipment, construction, for mining equipment, for drilling, for firefighting
Protection level
IP65
Battery type
rechargeable, Li-ion
Length

178 mm
(7.01 in)

Width

358 mm
(14.09 in)

Weight

3 kg
(6.614 lb)

Temperature

Max.: 70 °C
(158 °F)

Min.: -25 °C
(-13 °F)

Frequency

Max.: 2,480 MHz

Min.: 405 MHz

Continuous working time

40 h

Description

Robust spectrum quality for large applications. Many features and functions for individual configuration. Also available with HBC linear levers. Operating elements & control functions Up to 4 additional analog functions, e. g. for potentiometer switches Optional: Z-axis switch for the simultaneous control of 3 drives Optional: Capacity gauge via LEDs radiomatic® CPS Indication LED for the indication of operating / battery status Acoustic signal to indicate low battery status Transmitter vibration to indicate low battery status Adaptive Frequency Hopping HBC's advanced fully automatic frequency management comes standard with all our 2.4 GHz radio systems. Your advantages: A manual frequency coordination with other radio users is not necessary. The operator can work without interruption, even in areas with many radio users. This saves valuable time. This technology is approved almost worldwide, which makes warehousing much easier: instead of different country-specific high frequency modules, in most cases, just a single 2.4 GHz module can be used.
