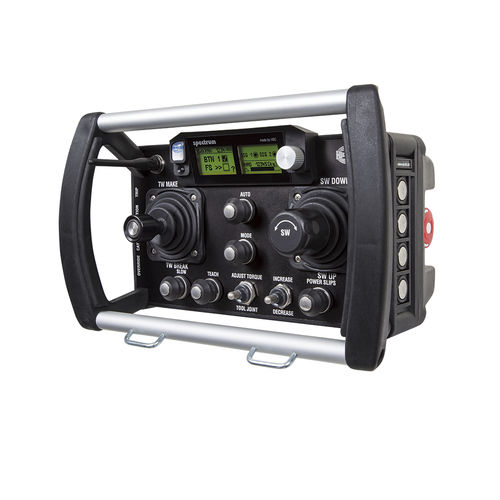

Radio control spectrum Ex Category 3

joystickwith toggle switchrotary switch

With the spectrum transmitters for ATEX category 3, HBC-radiomatic presents versatile and powerful radio controls for applications in Ex zones 2 and 22. Three different housing sizes and a large selection of operating elements and functions allow for a perfect adaptation of the radio control to the demands of the application. Operating elements & control functions Up to 4 joysticks or up to 8 linear levers Individual combination of push buttons, toggle switches, rotary switches (maintained / spring-return) and other operating elements On the side: up to 8 one-step push buttons radiomatic® iCON for display navigation (only for spectrum B Ex3) STOP impact switch Up to 36 control functions (on / off) Up to 8 analog functions Up to 2 additional analog functions, e. g. for potentiometer switches; additional control functions available through the display (soft keys; only for the spectrum B Ex3) Optional: Joystick with integrated button Z-axis switch for the simultaneous control of 3 drives Battery technology Rechargeable NiMH exchange battery Continuous operating time: up to 10 hours Indication LED for the indication of operating / battery status Acoustic signal to indicate low battery status
