Radio control quadrix Ex
with buttonsindustrialfor cranes

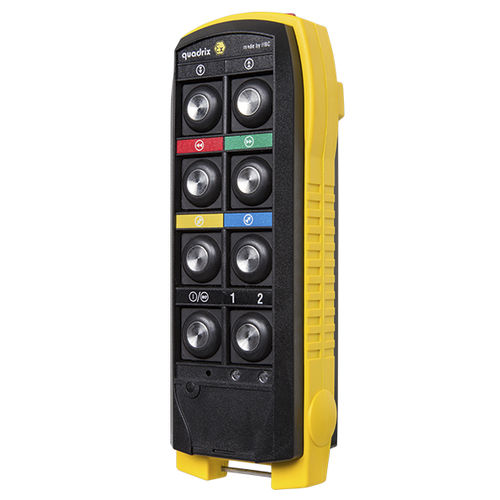

Radio control - quadrix Ex - HBC-radiomatic - with buttons / industrial / for cranes
Radio control - quadrix Ex - HBC-radiomatic - with buttons / industrial / for cranes
Radio control - quadrix Ex - HBC-radiomatic - with buttons / industrial / for cranes - image - 2
Radio control - quadrix Ex - HBC-radiomatic - with buttons / industrial / for cranes - image - 3
Radio control - quadrix Ex - HBC-radiomatic - with buttons / industrial / for cranes - image - 4
Radio control - quadrix Ex - HBC-radiomatic - with buttons / industrial / for cranes - image - 5
Radio control - quadrix Ex - HBC-radiomatic - with buttons / industrial / for cranes - image - 6
Radio control - quadrix Ex - HBC-radiomatic - with buttons / industrial / for cranes - image - 7
Add to favorites
Compare this product

Characteristics

Type
radio
Control interface
with buttons
Product applications
industrial, for cranes, for machines, for hazardous areas
Number of buttons
8-button
Features
with emergency stop, on/off
Protection level
IP65, ATEX
Battery type
rechargeable, Ni-MH
Other characteristics
compact
Length

180 mm
(7.09 in)

Width

65 mm
(2.56 in)

Weight

350 g
(12.346 oz)

Temperature

Max.: 60 °C
(140 °F)

Min.: -20 °C
(-4 °F)

Frequency

Max.: 2,480 MHz

Min.: 405 MHz

Continuous working time

12 h

Description

Perfect for standard industrial cranes and machines in hazardous working areas. High operating comfort thanks to small dimensions. Battery technology Rechargeable NiMH exchange battery Continuous operating time: up to 12 hours Indication LED for the indication of operating / battery status LEDs for the indication of selection buttons Adaptive Frequency Hopping HBC's advanced fully automatic frequency management comes standard with all our 2.4 GHz radio systems. Your advantages: A manual frequency coordination with other radio users is not necessary. The operator can work without interruption, even in areas with many radio users. This saves valuable time. This technology is approved almost worldwide, which makes warehousing much easier: instead of different country-specific high frequency modules, in most cases, just a single 2.4 GHz module can be used. In countries where HBC radio systems are approved, the 2.4 GHz technology is available without registration or license fees. This saves costs and effort. How it works: Frequency management is already included in the radio system and works automatically.
