Oil tank WST

steelstainless steelweldless

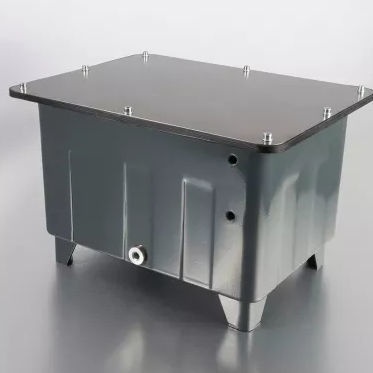

Oil tanks steel with few weld seams WST
HBE manufactures oil tanks and sumps in accordance with DIN standards or factory standards, primarily to customer specifications. We process both carbon steel and stainless steel.

HBE is a certified welding company in accordance with DIN EN 1090 and a specialized company under §62 AwsV (WHG). In addition, all welding processes are certified under the WPQR procedure in accordance with DIN EN ISO 15614-1:2017-12.

The steel oil tanks of the WST series meet high demands for various hydraulic applications thanks to their high rigidity and few weld seams.An epoxy powder coating in RAL 7011 (iron grey) ensures a high level of surface protection and an aesthetic appearance.

Specially shaped lid seals prevent dripping oil leaks and have a vibration-damping effect. The low container weights contribute significantly to reducing freight costs. Constant warehouse stock of the container sizes WST on short delivery times.

Technical specifications

• High rigidity and few weld seams
• Thus, the tanks meet highest demands of various hydraulic applications
• Low weights are minimising freight costs
• Epoxy powder coating in RAL 7011 (iron grey) for a high level surface protection and an aesthetic appearance
• Delivery content: NBR lid gasket, blank steel lid, drain plug, bores for level indicator and welded steel feet
• On request: individual machining of tank lids for extra charge
• Specially designed lid gaskets prevent leakage oil dripping down
• Short delivery times due to stock availability

Extensive range of accessories

• Cleaning covers, gaskets, level oil gauges, level switches, various filters, fillers, tank heaters, etc.
• Individual lid machining
• Final varnish
• Primary coating resistant to special media
• Stainless steel 1.4301 (V2A) resp. 1.4571 (V4A), glass bead blasted inside and outside
• Leak-tightness certificate
