Oil tank AB

aluminumcast aluminumrectangular

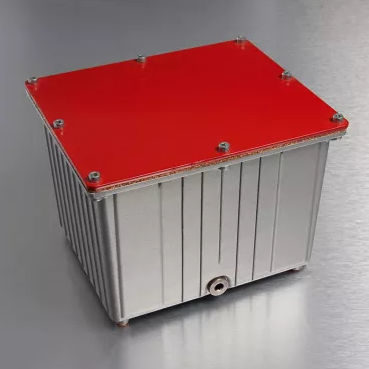

Cast aluminium oil tanks AB
HBE aluminium oil tanks ensure space-saving warehousing and low freight costs thanks to their stackability and low weights.

The stable casted bodies have a good heat dissipation due to the aluminium material and all-round ribbing. All tank sizes are optionally available with holes for sight glasses or even complete machining of the lids in accordance with customer specifications.

Corresponding oil sumps complete the product range. HBE is also happy to undertake complete lid machining to customer specifications on a modern plasma plant.

Technical specifications

• Low freight costs and space saving storage due to stackability
• Stable casted body with good heat dissipation by material aluminium and all-round fluting
• From AB 12 with feet and from size AB 44 optional with castors
• Flat gasket between tank lid and tank made of paperboard or rubber cork for AB 3,5 – AB 20
• Toroidal sealing ring (endless, without contact spot) 6 mm ø NBR for AB 30 – AB 70
• On request, all sizes with bores for oil level gauge
• On request, individual lid machining available at short notice
• Short delivery times due to stock availability

Extensive range of accessories

• Cleaning covers, gaskets, level oil gauges, level switches, various filters, fillers, tank heaters, etc.
• Individual lid machining
• Leak-tightness certificate
