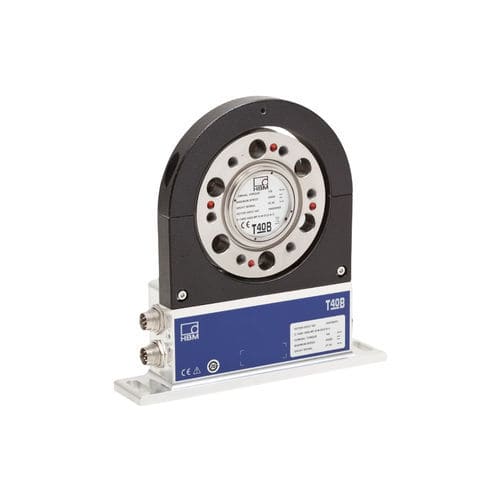

Static torque transducer T40B
dynamicflange-mounteddigital

static torque transducer
static torque transducer
static torque transducer
Add to favorites
Compare this product


Characteristics

Type
static, dynamic
Configuration
flange-mounted
Output
digital, ratiometric
Torque

Max.: 10,000 Nm
(7,375.62 ft.lb)

Min.: 50 Nm
(36.88 ft.lb)

Description

The All-Rounder For Test Benches Cost-effective, robust and precise. The versatile T40B torque sensor is ideally suited for test bench applications in research and development, as well as End-of-Line tests (EoL) in production. T40B Torque Transducer: Digital Torque Measurement with Nominal (Rated) Torques from 50 Nm to 10 kNm T40B is outstanding for its precision, reproducibility and robustness and is particularly well suited for static and dynamic torque measurement. The torque transducer features 0.03% accuracy in terms of linearity including hysteresis, as well as high temperature stability. Combined with the integrated magnetic rotational speed measuring system, it allows for power measurement in the drive train. Non-contact power supply and digital signal transmission guarantee fail-safe and maintenance-free operation. The TIM-EC interface module for EtherCAT and TIM-PN for Profinet ensure maximum performance and high flexibility when integrating the torque and rotational speed signals with cutting-edge test bench systems. HBM accuracy class: 0.05 Now with Even Higher Rotational Speed T40B is now available with an increased rotational speed of up to 23,000 rpm (1 kNm) or 18,000 rpm (2 and 3 kNm).The transducer thus fulfills the changed requirements with respect to speed resistance, e.g. in electric drives. Precise High accuracy of only 0.03% in terms of linearity including hysteresis High temperature stability High accuracy and stability due to ratiometric method of measurement Cost-effective, high-performance torque transducer for high precision and reproducibility of measurement results in test benches.

Catalogs
