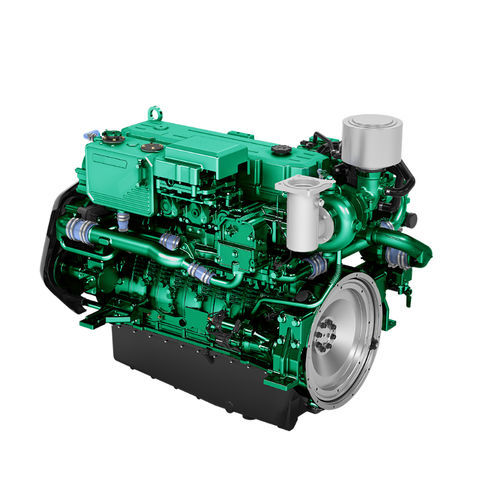

Diesel engine 4L126C6-cylinderturbo-intercoolercommon rail
Add to favorites
Compare this product
Characteristics
- Type
- diesel
- Number of cylinders
- 6-cylinder
- Technology
- turbo-intercooler, common rail, in-line
- Product applications
- marine
- Emissions level
- Tier 2, Tier 3
- Power
Min.: 331 kW
(450.03 hp)294 kW, 331 kW, 368 kW, 405 kW
(399.73 hp, 450.03 hp, 500.34 hp, 550.65 hp)Max.: 405 kW
(550.65 hp)- Rotational speed
Min.: 1,800 rpm
(11,309.7336 rad.min-1)1,800 rpm, 2,000 rpm, 2,100 rpm
(11,309.7336 rad.min-1, 12,566.3706 rad.min-1, 13,194.6891 rad.min-1)Max.: 2,100 rpm
(13,194.6891 rad.min-1)- Displacement
11.1 l
(2.932 gal)- Tank volume
11 l
(2.9 gal)- Weight
1,182 kg
(2,605.86 lb)- Length
1,607 mm
(63.3 in)- Width
912 mm
(35.9 in)- Height
1,287 mm
(50.7 in)
Description
It is a 11-liter turbo-intercooler in-line 6-cylinder electronic engine with maximum output of 550 PS that meets IMO Tier II/III and EPA Tier 3 regulations.
High performance solution
- Advanced Fuel Injection System with common Rail
- Compliance with emission regulation (Satisfy IMO Tier II/III, EPA Tier 3)
- SCR (Selective Catalytic Reduction) technology is used for Tier 3
- Increased durability of key components
- Decrease smoke leve
Convenience / Maintainability / Stability
- Application of Auto Tensioner
- Application of Turning Device
- Application of Safety Guards
- Application of Electrical oil drain pump
- Application of CCV type for improving engine room cleanliness
Economical solution
- Maintaining engine power node of mechanical engine and decreasing fuel consumption to average 5% by downsizing
- Increased oil &filter replacement cycle (250hr → 500hr)
Provide extended warranty program
- Maximum 3 years warranty provided through extended warranty option
