AC servomotor HSM 09J series
400 V380 V220 V

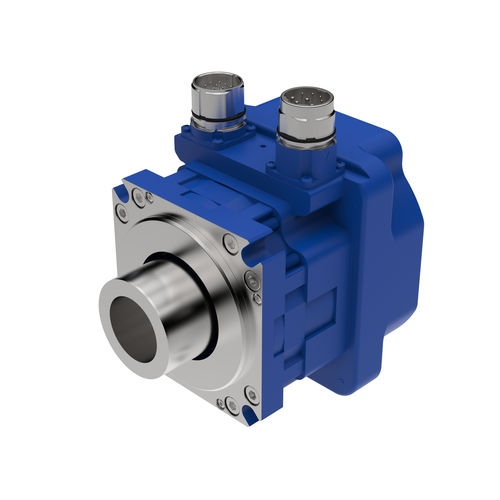

AC servomotor - HSM 09J series - HDD Sweden AB - 400 V / 380 V / 220 V
AC servomotor - HSM 09J series - HDD Sweden AB - 400 V / 380 V / 220 V

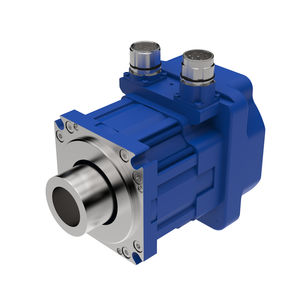

AC servomotor - HSM 09J series - HDD Sweden AB - 400 V / 380 V / 220 V - image - 2

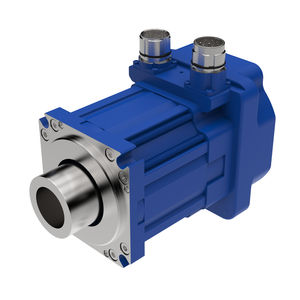

AC servomotor - HSM 09J series - HDD Sweden AB - 400 V / 380 V / 220 V - image - 3
AC servomotor - HSM 09J series - HDD Sweden AB - 400 V / 380 V / 220 V - image - 4
AC servomotor - HSM 09J series - HDD Sweden AB - 400 V / 380 V / 220 V - image - 5
AC servomotor - HSM 09J series - HDD Sweden AB - 400 V / 380 V / 220 V - image - 6
Add to favorites
Compare this product
Go to the HDD Sweden AB website for more information

Characteristics

Type
AC
Voltage
400 V, 380 V, 220 V, 240 V, 48 V
Configuration
hollow-shaft, compact
Protection class
IP65, IP67, maintenance-free
Number of poles
20-pole
Applications
for robotics, industrial, packaging machine, for the textile industry, for machine tools, for the automotive industry, for medical applications, for rotary tables
Other characteristics
high-torque, low-inertia
Power

Max.: 2,265 W
(3.08 hp)

Min.: 0 W
(0 hp)

817 W
(1.11 hp)

Torque

Max.: 7.35 Nm
(5.421082 ft.lb)

2.6 Nm, 4.6 Nm
(1.917662 ft.lb, 3.392786 ft.lb)

Rotational speed

3,000 rpm
(18,849.5559 rad.min-1)

Description

Our smallest hollowshaft motor, HSM 09J with a ø45 mm hollow shaft where the thru center hole is ø30 mm (ø40 mm on request). The hollow shaft allows for example axles, cables, liquids or laser beams to be passed through the motor. HSM 09J has a rated speed 3000 rpm, rated torque 2,6 Nm and a compact length of 96,9 mm. For shorter accelerations you get a peak torque of 7.35Nm. Weight is only 3,3 kg. HSM motors are as standard available with sin-cosin feedback system with either EnDat or Hiperface protocol and a number of drive compatible drive pinouts. IP 65 as a standard. Can be ordered with IP 67. Rotorshaft can be customized with axial fixing holes, flatsports or else. For further information see datasheet for HSM 09J. Length [mm]: 96.9 Flange size [mm]: 92 Mass [kg]: 3.3 Inertia [kgcm^2]: 5.1 Shaft dia [mm]: 45 j6 Thru hole: ø30 (up to ø40 on request) * Housing length without outgoing shaft
