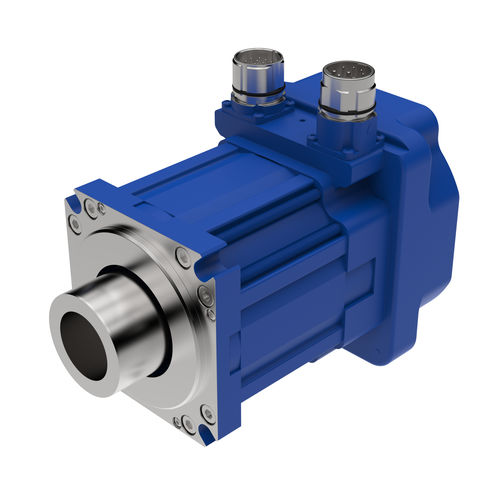

AC servomotor HSM 09Q series
400 V380 Vhollow-shaft

AC servomotor - HSM 09Q series - HDD Sweden AB - 400 V / 380 V / hollow-shaft
AC servomotor - HSM 09Q series - HDD Sweden AB - 400 V / 380 V / hollow-shaft
AC servomotor - HSM 09Q series - HDD Sweden AB - 400 V / 380 V / hollow-shaft - image - 2
AC servomotor - HSM 09Q series - HDD Sweden AB - 400 V / 380 V / hollow-shaft - image - 3
AC servomotor - HSM 09Q series - HDD Sweden AB - 400 V / 380 V / hollow-shaft - image - 4
AC servomotor - HSM 09Q series - HDD Sweden AB - 400 V / 380 V / hollow-shaft - image - 5
Add to favorites
Compare this product
Go to the HDD Sweden AB website for more information

Characteristics

Type
AC
Voltage
400 V, 380 V
Configuration
hollow-shaft, compact
Protection class
IP65, IP67, maintenance-free
Number of poles
20-pole
Applications
for robotics, industrial, packaging machine, for the textile industry, for machine tools, for the automotive industry, for medical applications, for rotary tables
Other characteristics
high-torque, low-inertia
Power

Max.: 4,500 W
(6.12 hp)

1,508 W
(2.05 hp)

Min.: 0 W
(0 hp)

Torque

Max.: 18 Nm
(13.276119 ft.lb)

4.8 Nm, 11.3 Nm
(3.540298 ft.lb, 8.334452 ft.lb)

Rotational speed

2,000 rpm
(12,566.3706 rad.min-1)

Description

Our biggest motor in the HSM 09-serie, HSM 09Q, with rated speed 2000 rpm, rated torque 4.8 Nm, the length of 146,9 mm and with a hollow shaft of ø45 mm where the thru center hole is ø30 mm (ø40 mm on request). For shorter accelerations you get a peak torque of 18Nm. Weight is 4,6 kg. The hollow shaft allows for example axles, cables, liquids or laser beams to be passed through the motor. HSM motors are as standard available with sin-cosin feedback system with either EnDat or Hiperface protocol and a number of drive compatible drive pinouts. IP 65 as a standard. Can be ordered with IP 67. Rotorshaft can be customized with axial fixing holes, flatsports or else. For further information see datasheet for HSM09Q. Length [mm]: 146.9 Flange size [mm]: 92 Mass [kg]: 4.6 Inertia [kgcm^2]: 10 Shaft dia [mm]: 45 j6 Thru hole: ø30 (up to ø40 on request) * Housing length without outgoing shaft
