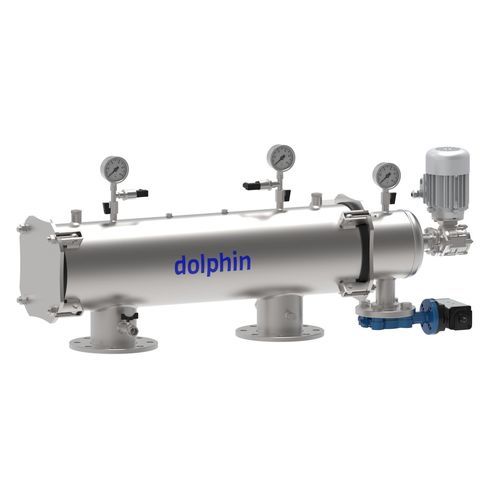

Water filter air-phin

basketstrainerwire mesh

Description
air-phin is a self-cleaning suction scanning filter equipped with a motorized adaptive suction pad cleaning system that cleans the filter element within seconds without interrupting flow. It is designed to treat water with suspended solids and is suitable for industrial applications such as process water treatment, HVAC closed-circuit systems and fire prevention systems. air-phin is available in three constructive shapes (Y, L, O) to suit different installation layouts. The housing and cleaning system are fully stainless steel with adaptive, wear-resistant suction pads for low maintenance operation.

Design data
Max flow rate [m3/h] : 400
Design pressure [bar] : PN10 (PN16 available on request)
Max temperature [°C] : 80
Salinity [TDS] : <10,000 ppm
pH range : 3 - 9
Design code : PED 68/2014/EU

Material
Filter housing : Stainless steel AISI 304 / AISI 316
Gasket : EPDM
Drain valve : AISI 316 disc and EPDM liner
Pressure gauges : Stainless steel AISI 304 / AISI 316
Surface finish : Micro shot peening and passivation

Certifications
EPDM gaskets certified for European drinking water regulations: UBA, DVGW W-270, WRAS and ACS.

Characteristics / technical specifications

• Model: air-phin
• Constructive shapes: Y, L, O
• Cleaning system: motorized adaptive suction pad; cleans filter element in seconds without interrupting flow
• Applications: process water treatment, HVAC closed-circuit systems, fire prevention systems, etc.
• Filter housing material: Stainless steel AISI 304 / AISI 316
• Max flow rate: 400 m3/h
• Design pressure: PN10 (PN16 available on request)
• Max temperature: 80 °C
• Salinity (TDS): <10,000 ppm
• pH range: 3 - 9
• Design code: PED 68/2014/EU
• Gasket: EPDM
• Drain valve: AISI 316 disc with EPDM liner
• Pressure gauges: Stainless steel AISI 304/AISI 316
• Surface finish: Micro shot peening and passivation
