Steam hose EPDMcleaningreinforced
Add to favorites
Compare this product
Characteristics
- Use
- for steam
- Material
- EPDM
- Applications
- cleaning
- Other characteristics
- reinforced, braided steel
- Inner diameter
Max.: 64 mm
(2.52 in)Min.: 10 mm
(0.394 in)- Outer diameter
Max.: 79 mm
(3.11 in)Min.: 21.5 mm
(0.846 in)- Pressure
1 MPa, 2 MPa
- Temperature
Max.: 415 °F
(212.778 °C)Min.: -20 °F
(-28.889 °C)- Delivered length
Max.: 50 m
(164'00" )Min.: 20 m
(65'07" )
Description

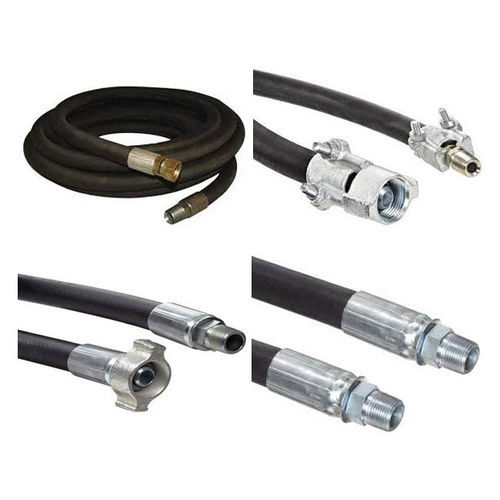

This is a steam hose with a heat resistant EPDM tube and cover for maximum life. It is used for cleaning, thawing, steam pumps, heat control, and many other all around steam applications throughout industry, and is reinforced with braided steel wire. Also available in Butyl.
Commonly provided with ground joint style fittings. Sold in multiples of 50 feet. 100 feet lengths may be available in some diameters.
Temperature range is -20F to 415F.
