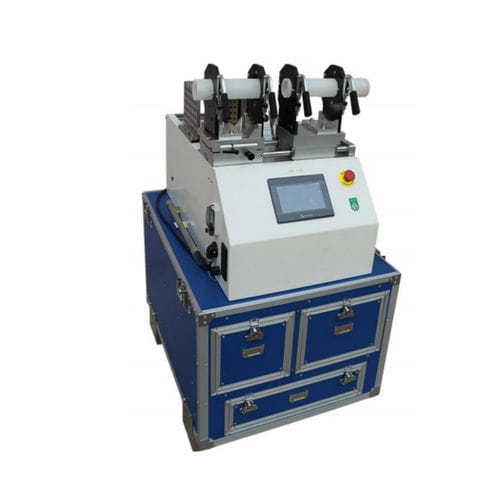

Infrared welding machine IR-110 CNC

automaticfor pipeline partsfor plastic pipe

Overview
The IR-110 CNC is a fully automatic CNC infrared non-contact welding machine for precision welding of thermoplastic pipes from 20 to 110 mm. It combines infrared thermal radiation heating with servo-driven positioning and a touchscreen interface for controlled, repeatable welding cycles.

Key features

• Touchscreen HMI with automatic program control and servo-driven precision motion
• Custom parameter mode to input and store welding parameters for different manufacturers
• Four high-precision pipe clamps with adjustable centering structure for reliable alignment
• Quick-install self-locking clamp and magnetic clamp for fast replacement and maintenance
• Printable welding parameters and remote software upgrade capability
• Stainless-steel protective cover and ergonomic design for safer operation
• Milling cutter limit and automatic heat-plate retraction to ensure process safety and repeatability

Applications

• Chemical, food & beverage, pharmaceutical, semiconductor, hospitals, laboratories and other contamination-sensitive environments; suitable for water, oil and gas pipeline fabrication and repair

Technical specifications

• Model: IR-110 CNC
• Working range: 20-110 mm
• Weldable materials: PFA, PP, PB, PVDF, PE
• Power supply: 220 VAC, 50/60 Hz
• Max. power: 2050 W
• Heating power: 1200 W
• Milling cutter power: 850 W
• Dimensions (L×W×H): 525 × 670 × 410 mm
• Weight: 120 kg
• Heating plate temperature range: 180–600 °C
• Protection degree: IP65
