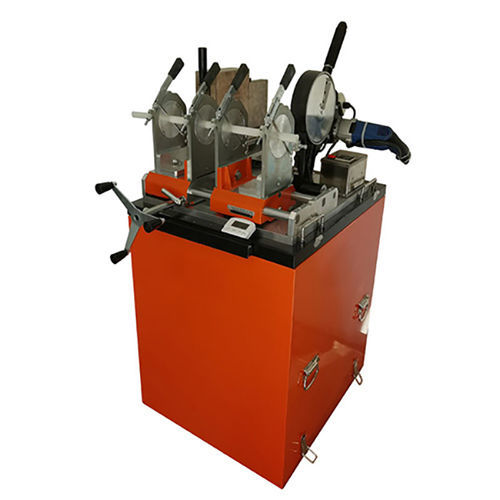

Infrared welding machine IRW-110

for pipesfor plastic pipefor food applications

The IRW-110 is an infrared welding machine engineered for high-precision, non-contact joining of thermoplastic tubes and components in the 20-110 mm (1"-4" IPS) range. It delivers a clean, controlled heating process suitable for production environments that require contamination-free assemblies.

Key features

• Precision: Designed for applications requiring high accuracy in alignment and weld quality.
• Non-contact process: Uses infrared heating to avoid direct contact with parts, minimizing contamination for sensitive sectors such as medical, food and pharmaceutical production.
• Material versatility: Suitable for a broad range of thermoplastics including PFA, PP, PB, PVDF and PE.
• Clean process: Eliminates adhesives and solvents, reducing post-process cleaning and environmental impact.

Applications

• Chemical industry; Food & beverage; Pharmaceuticals and laboratories; Semiconductor industry; High-purity water systems; Any contamination-sensitive manufacturing requiring non-contact plastic welding.

Technical specifications

• Equipment model: IRW-110
• Working range: 20-110 mm (1"-4" IPS)
• Weldable materials: PFA, PP, PB, PVDF, PE
• Power requirements: 220 VAC, 50/60 Hz
• Maximum power (total): 2050 W
• Heating plate power: 1200 W
• Milling power: 850 W
• Heating plate temperature range: 180–510 ℃
• Rack size (W×D×H): 525 × 670 × 410 mm
• Machine weight: 50–60 kg
• IP rating: IP65
• Packing size & G.W.: 650 × 630 × 900 mm; 117 kg
