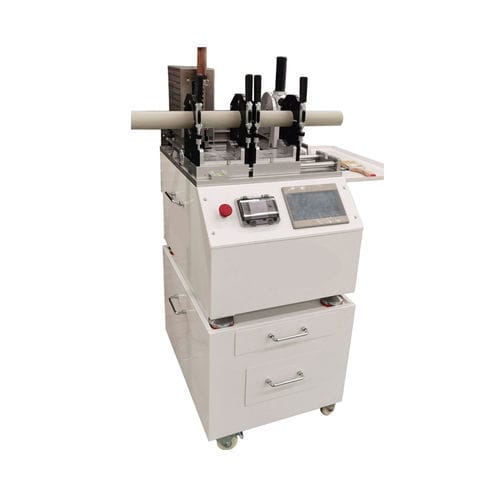

Infrared welding machine IR-110

automaticfor pipes220V single phase

The IR-110 automatic infrared welding machine is designed for fusion joints of ultra-pure water pipelines and high-purity polymer piping systems used in semiconductor manufacturing, ultra-pure chemical processing, medical laboratories and biopharmaceuticals. It employs non-contact infrared radiation heat-transfer fusion technology to produce precise, contamination-free welds for pipes and fittings made of PVDF, PFA, PP, PE and PB.

Key features

• Automatic program control with standard welding parameters and printable process logs for traceability.
• Custom parameter input mode to accept manufacturer-specific welding parameters.
• Operating temperature range 0–600 °C with controllable heating plate.
• Quick-installation self-locking clamp and magnetic clamp for fast changeover.
• Manual advance/retract milling cutter for reliable pipe preparation.
• Manual insertion and removal of the heating unit for controlled operation.

Applications
Non-contact infrared fusion welding is suitable for semiconductor fabs, ultra-pure chemical processing, medical and biopharmaceutical laboratories, hospitals, food & beverage and other industries that require contamination-free, high-purity pipeline joints.

Technical specifications

• Model: IR-110
• Working range: 20–110 mm (1"–4" IPS)
• Weldable materials: PFA, PP, PB, PVDF, PE
• Power supply: 220 V AC, 50/60 Hz
• Max. power: 2050 W
• Heating power: 1200 W
• Milling cutter power: 850 W
• Dimensions: 525 × 670 × 410 mm
• Weight: 120 kg
• Heating plate temperature range: 180–600 °C
• Protection degree: IP65
