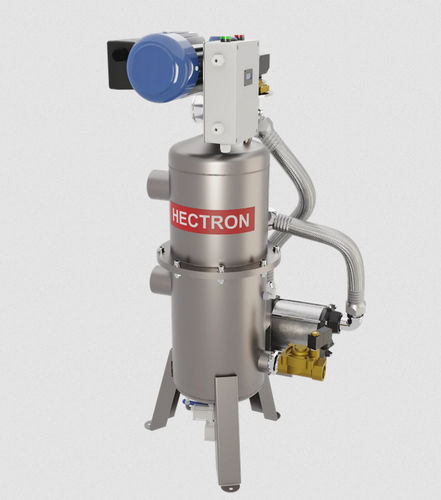

Water filter AS200 series

basketpressurefor low-pressure networks

Primarily used for protecting plate heat exchangers, Hectron AS filters have the advantage of operating at very low pressure: 0.5 bar of upstream pressure is sufficient. They are available for flow rates up to 340 m³/h. 3/h. The cleaning system is triggered by measuring the pressure difference between the upstream and downstream; the cleaning frequency automatically adjusts according to the water load. These models are supplied ready to use, with a cleaning pump and automatic control system. They are equipped with control indicators and a cycle counter. Size available 2’’ BSP 3’’ BSP Available versions Stainless steel 304, brass Stainless steel 316L Seawater
