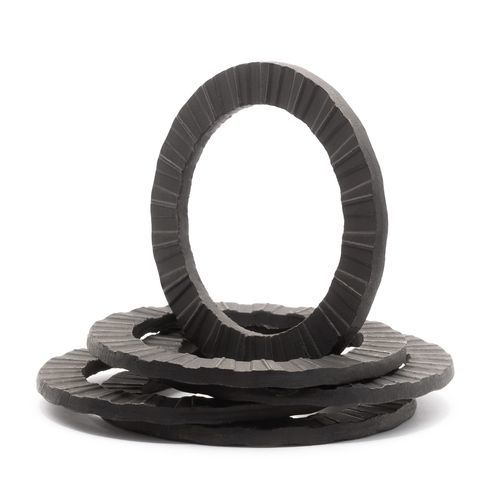

Self-locking washer HEICO-ONE

safetyround

HEICO-ONE Safety-Washer The HEICO-ONE Safety-Washers are the optimal solution for locking/counter-holding large bolted joints that are tightened with HEICO-LOCK® Reaction Washers using electric, hydraulic or pneumatic torque tools. The innovative backup washer prevents the bolt/nut from turning on the passive side during the tightening process. The HEICO-ONE Safety-Washer is a single washer with wave-shaped locking ribs on both sides, which was specially designed for use with HEICO-LOCK® Reaction Washers to prevent the passive side from rotating in through-bolt connections during torque tightening. Due to the arrangement of the locking ribs and the wave-shaped design of the HEICO-ONE Safety-Washer, a positive friction/form fit is created even with low preload forces. Advantages - No additional counter-holding measures or second person required for bolted joint assembly - Immediate, effective locking even at low preload forceshttps://img.directindustry.de/images_di/2ai/save-En.gif - Ideal for installation in confined spaces - Tightening and loosening possible with access from only one side - Friction based positive locking - Effectively prevents turning on the passive side - Prevention of accidents at work by eliminating reaction arms - Protection against self-rotation when combined with HEICO-LOCK® Reaction Washers
