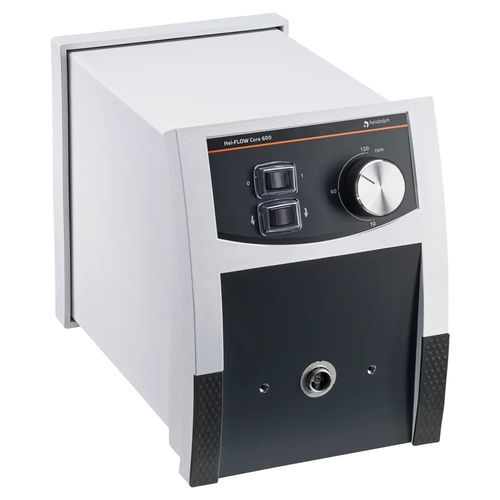

Chemical pump Hei-FLOW Core 600
electricself-primingperistaltic

chemical pump
chemical pump
Add to favorites
Compare this product


Characteristics

Fluid
for chemicals
Operation
electric
Priming
self-priming
Technology
peristaltic
Domain
laboratory
Applications
filling, conveying
Mobility
stationary
Protection level
chemical-resistant, IP55
Other characteristics
small, corrosion-proof, variable-speed
Flow

Min.: 0 l/min (0 us gal/min)

Max.: 0.0042 l/min (0.00111 us gal/min)

Description

This pump of the Hei-Flow Core series is particularly suitable when high volumes need to be transported easily. A flow rate of 4.0 - 4,151 ml / min can be set for this purpose. This model is designed for the use of single-channel pump heads. Even with a load change, the speed of 50 — 600 rpm is kept constant at a control accuracy of ±5%. It is easy to switch to the reverse direction of rotation. Hei-FLOW Core 600 - Technical Data Speed range: 50 - 600 rpm Control accuracy motor: ±2 % Select direction of rotation: CW / CCW Flow rate accuracy (water without counter pressure): ±5 % Protection class DIN EN 60529: IP 55
