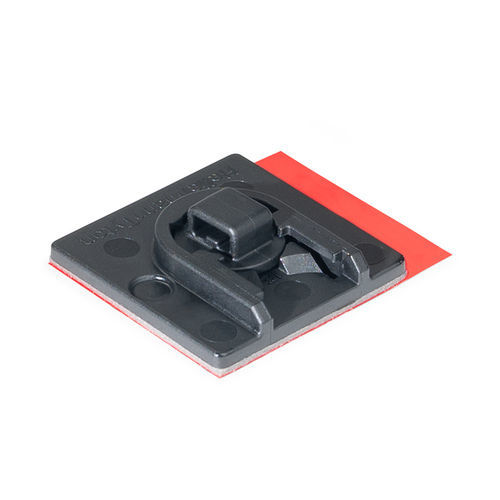

Self-adhesive cable tie mount SMB4APT-A-PA66HS/A-BK

polyamide

Short description
Cable tie mount SMB4APT-A for adhesive fixing, compatible with strap widths up to 4.8 mm. Delivered in packs of 50, black. Designed for dynamic applications with moving parts, the mount offers a rotatable head and self-aligning function to enable flexible and precise cable routing in confined or moving assemblies.

Key features

• 360° rotatable head for full adjustability
• Self-aligning function for precise placement during installation
• Suitable for applications with moving parts where cables must flex
• Designed for use inside electrical cabinets and enclosures
• Compatible with cable ties up to 4.8 mm width
• High-strength synthetic rubber adhesive suitable for high- and low-energy surfaces

Materials & fixation
Material: Polyamide 6.6, heat stabilised (PA66HS). Adhesive: acrylate with acrylic foam carrier (high-strength synthetic rubber adhesive). Fixation method: adhesive pad for direct bonding to prepared surfaces.

Packaging & variant
Package content: 50 pcs, packed in a bag. Variant: adhesive mounts (type: SMB4APT-A).

Typical application
Engineered for dynamic assemblies and moving parts, this mount provides reliable cable management where bundles need to flex. The 360° rotatable head and self-aligning feature allow precise routing and placement in enclosures, machinery panels and assemblies under motion.

Dimensions (product)
Height (H): 8.4 mm
Length (L): 28.0 mm
Width (W): 28.0 mm
Strap Width max. (G): 4.8 mm

Compliance & environment
RoHS compliant: Yes
ELV compliant (Article 4 - 2): Yes
Halogen-free: Yes
Flammability: UL 94 V2 (excluding adhesive)
Hazardous Goods: No
Operating Temperature: -40 °C to +90 °C

Logistics & origin
Country of Origin: GB
Customs Number: 39269097
GTIN-13 / EAN: 4031026763149
Weight per unit: 0.00288 kg

Characteristics / technical specifications

• Part description / Type: SMB4APT-A-PA66HS/A-BK (Type: SMB4APT-A)
• Product family: SMB-Series, 360º rotation
• Product group: Cable tie mounts with high performance adhesive
• Adhesive: Acrylate with acrylic foam carrier
• CE Certification: No
• RoHS compliant: Yes
• Operating temperature range: -40 °C to +90 °C
• Packaging 1 - Qty: 50; Type: bag; Dimensions (m): L 0.22 x W 0.15 x H 0.03; Volume: 0.00099 m³; Packaging 1 - Weight: 0.144001 kg
• Available documentation: RoHS datasheet, REACH datasheet, Technical datasheet, Catalogue page, Technical drawing (PDFs)
