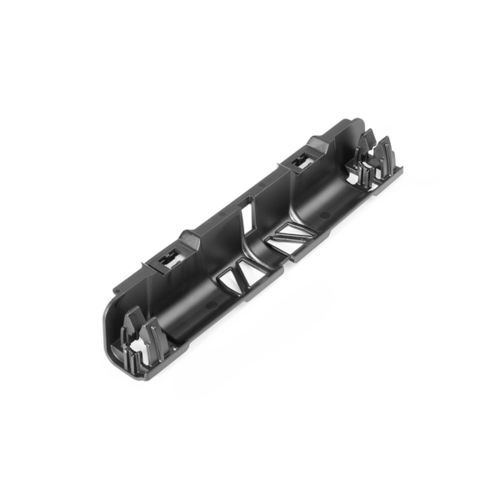

Connector clip SPC-DEC1-3SP-PA66HSUV/C75S-BKsteelpolyamidefixing
Add to favorites
Compare this product
Characteristics
- Product applications
- for connectors
- Material
- steel, polyamide
- Function
- fixing
- Other characteristics
- push-in
Description
Product description
Designed to securely hold an MC4, MC4 EVO2 or comparable solar connector (outer Ø 21.5 mm, max length 122.0 mm). The connector can be installed and removed easily; clip mounts by hand to panel edge (panel thickness 1.0–3.0 mm).
Key features
Base Data
Cable Ø max: 6.8 mm; Cable Ø min: 5.8 mm; Colour: Black (BK); Material: PA66HSUV (polyamide 6.6 heat and UV-stabilised) and Steel C75S; Fixation method: EdgeClip, sideway; Variant: For plug; UV-stabilised: Yes; Weight/unit: 0.01684 kg; Package content: 60 pcs; Part number: SPC-DEC1-3SP; Product family: for MC4 or MC4 EVO2 solar connectors.
Product Dimensions
Attach to Ø: 5.8 - 6.8 mm; Attach to Diameter: 0.23 - 0.27"; Height (H): 26.0 mm; Height (H2): 19.4 mm; Length (L): 162.4 mm; Panel thickness: 1.0 - 3.0 mm; Width (W): 31.9 mm; Width (W2): 24.9 mm.
Specifications
Operating temperature: -40 °C to +105 °C; Flammability: UL94 V2; Halogen-free: Yes; RoHS compliant: Yes; ELV compliant (Article 4-2): Yes; PFAS-free: No (alternative under development); Reusable: Yes; CE: No; UL listed/recognized: No.
Logistics and Packaging
Country of origin: PL; GTIN-13 / EAN: 4031026759531; Packaging: box, 60 pcs; Packaging dimensions (L × W × H): 0.288 m × 0.178 m × 0.17 m; Packaging weight: 1.130192 kg; Customs number: 39269097; Pallet length: 1.2 m; Pallet width: 0.8 m.
More information
ETIM keys: EC000449 (7.0 / 8.0 / 9.0); UNSPSC: 31162305; GLOBAL PART DESCRIPTION: SPC-DEC1-3SP-PA66HSUV/C75S-BK.
Technical characteristics
Designed to securely hold an MC4, MC4 EVO2 or comparable solar connector (outer Ø 21.5 mm, max length 122.0 mm). The connector can be installed and removed easily; clip mounts by hand to panel edge (panel thickness 1.0–3.0 mm).
Key features
- Edge-mount clip for simple hand installation
- Connector installed by push-in and removable without damage
- Integrated double-tempered steel clamp secures clip on panel
- Suitable for applications where drilling or adhesives are not acceptable
Base Data
Cable Ø max: 6.8 mm; Cable Ø min: 5.8 mm; Colour: Black (BK); Material: PA66HSUV (polyamide 6.6 heat and UV-stabilised) and Steel C75S; Fixation method: EdgeClip, sideway; Variant: For plug; UV-stabilised: Yes; Weight/unit: 0.01684 kg; Package content: 60 pcs; Part number: SPC-DEC1-3SP; Product family: for MC4 or MC4 EVO2 solar connectors.
Product Dimensions
Attach to Ø: 5.8 - 6.8 mm; Attach to Diameter: 0.23 - 0.27"; Height (H): 26.0 mm; Height (H2): 19.4 mm; Length (L): 162.4 mm; Panel thickness: 1.0 - 3.0 mm; Width (W): 31.9 mm; Width (W2): 24.9 mm.
Specifications
Operating temperature: -40 °C to +105 °C; Flammability: UL94 V2; Halogen-free: Yes; RoHS compliant: Yes; ELV compliant (Article 4-2): Yes; PFAS-free: No (alternative under development); Reusable: Yes; CE: No; UL listed/recognized: No.
Logistics and Packaging
Country of origin: PL; GTIN-13 / EAN: 4031026759531; Packaging: box, 60 pcs; Packaging dimensions (L × W × H): 0.288 m × 0.178 m × 0.17 m; Packaging weight: 1.130192 kg; Customs number: 39269097; Pallet length: 1.2 m; Pallet width: 0.8 m.
More information
ETIM keys: EC000449 (7.0 / 8.0 / 9.0); UNSPSC: 31162305; GLOBAL PART DESCRIPTION: SPC-DEC1-3SP-PA66HSUV/C75S-BK.
Technical characteristics
- Model: SPC-DEC1-3SP
- Material: PA66HSUV + Steel C75S
- Compatible connector: MC4 / MC4 EVO2 (Ø 21.5 mm, max length 122.0 mm)
- Attach range: 5.8 - 6.8 mm (panel thickness 1 - 3 mm)
- Dimensions (L × W × H): 162.4 × 31.9 × 26.0 mm
- Weight per unit: 0.01684 kg
- Package: box, 60 pcs
