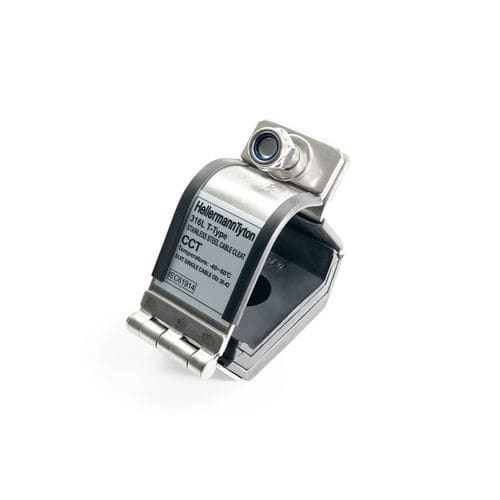

Stainless steel cable clamp CCT128-SS316L/PO-ML

with screw mountfire-resistantreusable

Description
The CCT128 trefoil cable cleat secures and supports three-core cable bundles in trefoil formation, maintaining alignment and containment under normal operation and during short-circuit events. Designed for environments exposed to high fault currents, it limits cable movement caused by electromechanical forces to protect infrastructure and personnel and to meet relevant industry requirements.

Key features

• Complies with IEC 61914:2021
• Marine-grade stainless steel SS316L construction
• Supplied with SS316L hardware (M8, M10 or M12 bolts) and nylon lock nut
• Screw mounting (standard M10 supplied)
• Protective polyolefin insulation
• Retains cable under electromechanical forces from short-circuit events
• 180 kA peak at 300 mm spacing; 125 kA peak at 600 mm spacing
• Very high impact resistance (lateral load test average 25 kg; axial load test passed)
• Needle flame test: 30 seconds
• UV resistance test: 1000 hours

Base Data
Cable ⌀ max: 128 mm
Cable ⌀ min: 119 mm
Colour: Metal (ML)
Description: Cable Cleat Trefoil Formation, manufactured in SS316L with polyolefin protective insulation for applications where short-circuit forces present a risk to equipment and personnel.
Fixation Method: Screw mounting
Key product features: protective insulation
Material: Stainless Steel (SS316L), Polyolefin compound (PO)
Mechanical material properties: Very high impact resistance
Mounting Screw Type: M10 screw (supplied as standard)
PART DESCRIPTION: CCT128-SS316L/PO-ML
Package Content: 1 bag (EA)
Product Family: Cable Cleat Trefoil
Product Group: Cable Cleat Stainless Steel
Short Description: Cable cleat trefoil formation, SS316L, for cable diameters 119 mm to 128 mm, IEC 61914:2021
Type: CCT128
Typical Application: Secure and support electrical cables in cable management systems; maintain alignment and containment during normal operation and short-circuit events
UV-Stabilised: Yes
Variant: TREFOIL
Weight/Unit: 1.5 kg

Product Dimensions
Bundle ⌀: 119–128 mm
Bundle ⌀ max.: 128 mm
Bundle ⌀ min.: 119 mm
Depth (D): 210 mm
Height (H): 265 mm
Suitable for cross section: 2500 mm²
Thickness (T): 2.1 mm
Width (W): 295 mm

Specifications
Corrosion Resistance: Yes
ELV compliant (Article 4 - 2): Yes
Flame resistant: Yes
Flammability: non-burning
Halogen-free: Yes
Hazardous Goods: No
Operating Temperature: -40 °C to +60 °C
ROHS compliant: Yes
Resistant to short circuit forces: Medium-/high voltage applications
Reusable: Yes
Standards: IEC 61914:2021

Logistics & Packaging
Country of Origin: CN
Customs Number: 73269098
GTIN-13 / EAN: 4031026790954
Packaging 1 - Qty: 1 (bag)
Packaging 1 - Type: bag
Packaging 1 - Weight: 1.5 kg
Packaging 3 - Height: 0.27 m
Packaging 3 - Length: 0.46 m
Packaging 3 - Qty: 10 (carton)
Packaging 3 - Type: carton
Packaging 3 - Volume: 0.0447 m³
Packaging 3 - Weight: 15.93 kg
Packaging 3 - Width: 0.36 m
Packaging 4 - Height: 1.224 m
Packaging 4 - Length: 1.2 m
Packaging 4 - Qty: 160 (pallet)
Packaging 4 - Type: pallet
Packaging 4 - Volume: 1.175 m³
Packaging 4 - Weight: 276.88 kg
Packaging 4 - Width: 0.8 m

More information / Classification
ETIM 8.0 Key: EC004588
ETIM 9.0 Key: EC004588
UNSPSC Key: 31162305

Technical characteristics / specifications

• Model / Type: CCT128
• Material: SS316L stainless steel with polyolefin insulation
• Cable diameter range: 119 mm–128 mm
• Mounting: Screw mounting (M10 screw)
• Operating temperature range: -40 °C to +60 °C
• Weight per unit: 1.5 kg
• Standards: IEC 61914:2021
• Corrosion resistant, halogen-free, flame resistant, UV stabilised
