Banana chips production line FL-B200

automatic

Product overview

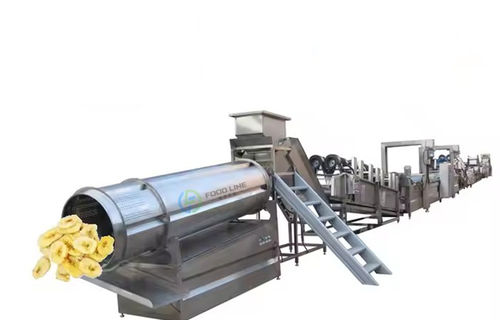

The automatic Banana Chips Production Line processes bananas and plantains into sliced and finished chips. The line integrates slicing, blanching, frying (or de-oiling), seasoning and multi-head packaging modules to support continuous production with sanitary design and modular configurations. It is intended for commercial snack manufacturers, small processors and start-ups. Units can be adapted for ripe or unripe fruit, different slice thicknesses and flavor/packaging options. Exported to 80+ countries; CE certification available.

Key features

• Fully automatic workflow from slicing to frying and packaging
• Oil circulation and filtration system to reduce oil usage (up to 40% reduction claimed)
• Customizable seasoning drums and multi-head packaging for multiple bag sizes and flavors
• Adjustable slicing for ripe or raw bananas and plantains
• Hygienic design compliant with food production requirements
• Manufacturer offers customization and after-sales support
• CE-certified components available

Types of banana/plantain chips you can produce

• Vacuum-fried low-oil chips
• Raw (unripe) banana chips
• Ripe banana sweet chips
• Plantain chips
• Salted, spicy or honey-coated varieties

Specifications of banana chips maker machine
Machine Name | Capacity | Voltage | Power | Weight | Dimension
Banana Chips Cutting Machine | 600-800Kg/h | 220V-3 | 0.75Kw | 100Kg | 650*550*900mm
Lifting Machine | 1000Kg/h | 220V-3 / 380V-3 | 0.75Kw | 400Kg | 2000*650*1300mm
Blanching Machine | 300Kg/h | 380V/50Hz | 36.0Kw | 300kg | 1600*1100*1500mm
De-Watering Machine (above discharge) | 300Kg/h | 380V/50Hz | 1.5Kw | (not specified) | 1200*1200*1400mm
Lifting Machine | 1000Kg/h | 380V/50Hz | 0.75Kw | 400Kg | 1900*800*1000mm

Technical specifications / characteristics

• Cutting capacity: 600–800 kg/h (banana chips cutting machine)
• Lifting capacity: up to 1000 kg/h (lifting machine options)
• Blanching capacity: 300 kg/h; blancher power 36.0 kW; dimension 1600×1100×1500 mm
• De-watering capacity: 300 kg/h; power 1.5 kW; dimension 1200×1200×1400 mm
• Voltage options: 220V-3, 380V-3 and 380V/50Hz depending on unit
• Example machine weights: cutting machine ~100 kg; lifting machines ~400 kg
• Typical machine dimensions provided per unit (see table above)
• Designed to produce vacuum-fried, fried and coated chip varieties
