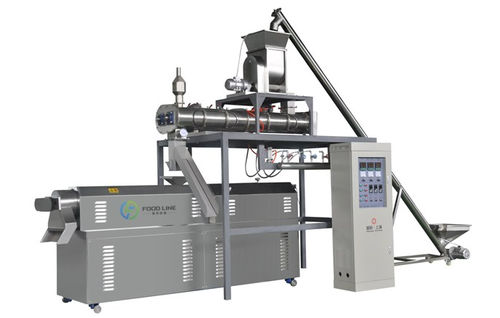

Pet food food industry production line FL series

for sprinklingautomatedmodular

Overview
Start or scale dry cat food production with a configurable FL series pet food production line. The line is designed for manufacturers, contract producers and feed processors and can be sized for outputs from about 100 kg/h up to multiple tons per hour.

Technical information of Pet food making machine
Model: FL70 | FL85 | FL100 | FL135
Installed power: 90 kW | 145 kW | 170 kW | 240 kW
Real power consumption: 63 kW | 102 kW | 120 kW | 165 kW
Capacity: 150-200 kg/h | 300-500 kg/h | 1000-1500 kg/h | 2000-3000 kg/h

Cat Food Production Line Overview

• Mixer - Mix raw ingredients such as meat powder, corn and soy
• Screw Conveyor - Transfers mixed material into the extruder
• Twin-Screw Extruder - Cooks and shapes the cat kibble
• Dryer - Reduces moisture to meet shelf-life targets
• Flavoring Drum - Applies oils, vitamins and flavor coatings
• Cooling Conveyor - Cools product before packaging
• Packaging Machine - Weighs and seals bags for retail or bulk distribution

What Can You Make?

• Dry cat kibble in various shapes (round, fish, pillow, triangle)
• Grain-free recipes
• Functional cat food with added supplements (omega-3, taurine)
• Private-label formulations

Advantages

• Automated operation: reduces labor and improves throughput
• Customizable output: shapes, sizes and formulations adjustable
• Hygienic design: food-grade stainless steel construction
• Digital control panel: temperature and speed settings for repeatable processing
• Multi-recipe compatibility: suitable for cat and dog food with minor adjustments

Additional Product Details
Each module can be configured to match capacity and recipe requirements. Flavoring and mixing stages allow nutrient and oil additions for fortified products. Standard electrical specification: 380V, 50Hz (custom voltages available).

Technical specifications

• Model series: FL series (FL70, FL85, FL100, FL135)
• Installed power per model: 90 kW / 145 kW / 170 kW / 240 kW
• Typical real power consumption: 63 kW / 102 kW / 120 kW / 165 kW
• Capacity ranges by model: 150-200 kg/h; 300-500 kg/h; 1000-1500 kg/h; 2000-3000 kg/h
• Line components: Mixer, Screw Conveyor, Twin-Screw Extruder, Dryer, Flavoring Drum, Cooling Conveyor, Packaging Machine
• Construction material: Food-grade stainless steel
• Control: Digital control panel for temperature and speed
• Product output: Dry kibble shapes and formulations, including grain-free and supplemented recipes
• Customization: Shapes, sizes, recipes, voltage and output capacity configurable
• Maintenance: Designed for easy cleaning; operation & maintenance guide and video support provided
