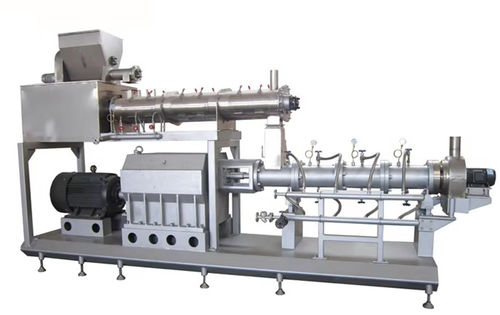

Pet food food extruder FL series

for grain productslaboratorymultigrain

Product summary
Industrial dog food extruder FL series for continuous production of dry and semi‑moist kibble. Designed in stainless steel food‑grade construction, the line supports flexible recipes (grain‑based, grain‑free) and scalable capacities from laboratory to industrial output (models cover approx. 0.1–25 T/h). Suitable for integration with dryers, coating and packaging equipment.

Key features

• Fully automatic or semi‑automatic operation with recipe management
• Capacity options covering pilot to high‑capacity production (model dependent)
• Touchscreen PLC control system for precise parameter adjustment
• Stainless steel (food‑grade) construction for hygiene and cleanability
• Multiple die shapes available (bone, fish, round, heart, star, pillow, pellet, ring, custom)
• Compatible with dry, semi‑moist and aquatic floating/sinking feed formulations

Technical specifications (summary table)
Model — Main Power (kW) — Capacity (T/h)
FL55 — 22 — 0.15–0.3
FL65 — 45 — 0.1–0.3
FL68 — 75 — 0.5–1.3
FL98 — 110/132 — 1.5–3.0
FL130 — 200/160 — 3.0–6.0
FL138 — 250/200 — 5.0–8.0
FL158 — 400/355 — 8.0–13.0
FL178 — 500/630 — 13.0–20.0
FL1218 — 630/800 — 20.2–25.0

Applications (summary)
Pet Type — Output Example — Shape Options
Dogs — Dry dog kibble — Bone, round, fish, custom shapes
Cats — Crunchy cat food — Heart, star, pillow
Fish — Floating or sinking aquatic feed — Pellet, ring
Small animals — Rabbit or bird feed — Custom shapes

Working process

• Mixer — blend raw ingredients (cereals, meals, powders, additives)
• Screw conveyor — feed the mix into the extruder
• Extruder — cooking under controlled temperature and pressure; shaping through dies
• Dryer — moisture reduction to reach shelf stability
• Flavoring/coating stage — oil, vitamin or flavor coatings (vacuum coating optional)
• Cooling conveyor & packing system — cooling and automatic weighing/packing options

Raw materials

• Grains: corn, wheat flour, rice
• Protein sources: fish meal, meat powder, bone meal
• Vegetable proteins/oilcakes: soybean meal, sunflower cake
• Vitamins, minerals, flavor enhancers and other nutritional additives

Characteristics / technical specifications

• Model range: FL55, FL65, FL68, FL98, FL130, FL138, FL158, FL178, FL1218
• Main power: 22 kW up to 800 kW depending on model and motor configuration
• Production capacity: approx. 0.1–25.0 T/h depending on model
• Operation modes: fully automatic or semi‑automatic
• Control: touchscreen PLC for recipe and process control
• Construction: stainless steel food‑grade materials
• Product shapes: multiple die options for kibble and pellets
• Supported product types: dry kibble, semi‑moist food, floating/sinking aquatic feed, small‑animal feed
• Typical line components: mixer, screw conveyor, extruder, dryer, flavoring/coating machine (optional vacuum coating), cooling conveyor, packing system
• Optional add‑ons: vacuum coating machine, automatic weighing and bagging systems
