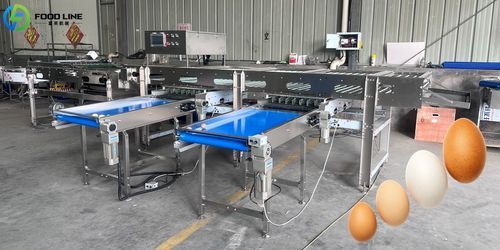

Food grader FL-3

for eggsfor poultryscale

Overview
The FL-3 automatic egg sorting machine sorts eggs by weight using electronic weighing sensors and PLC control. Designed for poultry farms and egg packing/processing centers, it handles 10,000–30,000 pcs/h and is built in 304 SUS stainless steel for food-industry environments.

How it works
Eggs travel on a conveyor through a weighing station where electronic sensors record each egg's weight and send data to the PLC. Based on preset weight classes, actuated ejectors or release devices divert eggs to the corresponding collection lanes to complete grading.

Applications

• Poultry farms and hatcheries
• Egg packing centers and processing lines
• Quality control and grading stations

Technical parameters
Model: FL-3
Capacity: 10000-30000 pcs/h
Accuracy: ±0.5 g
Grade: 2-5
Voltage: 220 V
Power: 1.5 kW
Material: 304 SUS stainless steel
Machine size: 8900 × 1880 × 1600 mm

• Model: FL-3
• Capacity: 10,000–30,000 pcs/h
• Accuracy: ±0.5 g
• Grade range: 2–5
• Voltage: 220 V
• Power: 1.5 kW
• Construction: 304 SUS stainless steel
• Dimensions: 8900 × 1880 × 1600 mm

Key features

• Electronic weighing sensors with ±0.5 g accuracy for weight-based grading
• PLC-based control for configurable weight classes and sorting logic
• Timed ejector/release mechanism for precise diversion into collection lanes
• Hygienic stainless-steel construction suitable for egg processing environments
• Capacity scalable to processing-line needs (10k–30k pcs/h)
