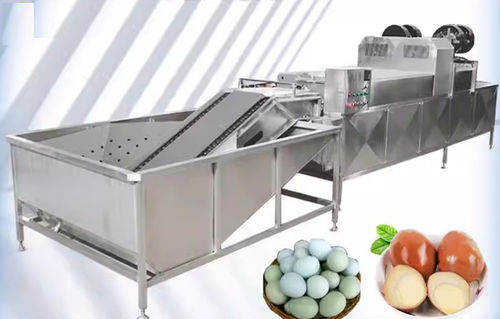

Egg food washing machine

automaticbrushrinsing

Overview
The Foodline automatic egg washing machine is engineered for farms, egg processing plants and commercial food processors. It removes dirt, bacteria and production residues from eggshells to prepare eggs for grading, packing or further processing while maintaining low breakage rates.

Capacity
Available in multiple configurations to match production needs: 3,000–10,000 eggs/hour for small units, 10,000–50,000 eggs/hour for medium lines and up to 100,000 eggs/hour for large-scale production lines. Modular design allows capacity scaling and line integration.

Technical Specifications
Model: Automatic Egg Washer (Foodline)
Capacity: 3,000–100,000 eggs/hour depending on model
Materials: Food-grade 304 stainless steel for all water-contact components
Brush system: Three brush rollers in an inverted-triangle layout with spiral-shaped, wear-resistant nylon brushes
Drive: Dual motor drive (0.55 kW × 2)
Operation: In-water egg feeding, automatic washing, rinsing and drying
Breakage rate: <0.5% under recommended settings

Features

• Integrated washing process compatible with grading and packing lines
• Gentle cleaning using soft roller brushes and controlled water pressure to minimize shell damage
• Food-grade 304 stainless steel construction for hygiene and durability
• Fully automatic operation including automatic feeding, washing, rinsing and drying stages
• Water- and energy-saving design with optimized circulation and reuse
• Available in modular configurations for small farms to large factories

Typical system components

• Soaking/softening module to loosen dirt and debris
• Brush cleaning module with adjustable pressure and speed
• High-efficiency water spraying/rinsing system
• Air drying module to prepare eggs for packing

Specifications

• Model name: Automatic Egg Washer (Foodline)
• Capacity range: 3,000–100,000 eggs/hour (model dependent)
• Materials: 304 stainless steel for tank and food-contact parts
• Brushes: Three roller brushes (inverted triangular layout), spiral-shaped, nylon wear-resistant
• Drive: Dual motors (0.55 kW × 2)
• Operation: In-water feeding, automatic washing, rinsing and drying
• Breakage rate: below 0.5% under correct operation
• Design: Water- and energy-saving circulation system
