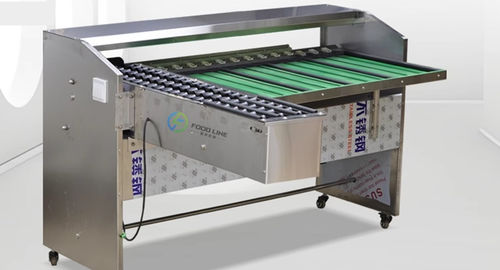

Egg grader FL-G series

opticalmechanicalroller

Overview
Foodline FL-G series egg grading machines are designed for small farms, poultry cooperatives and egg suppliers. They automatically grade chicken, duck, goose and quail eggs by weight and size in a compact, hygienic stainless steel construction suitable for agricultural production environments.

Models & Capacities

• FL-G35 — 220V/380V/50Hz | 200 W | 3,500 eggs/h | 1.48 × 1.35 × 1 m
• FL-G54 — 220V/380V/50Hz | 400 W | 5,400 eggs/h | 1.6 × 1.8 × 1.1 m
• FL-G100 — 220V/380V/50Hz | 11.5 kW | 10,000 eggs/h | Custom model
• FL-G200 — 220V/380V/50Hz | 21 kW | 20,000 eggs/h | Custom model

Key features

• Compact footprint adapted to small farms and limited packing areas.
• High accuracy: weight grading precision up to ±1 g for consistent size sorting.
• Stainless steel food-grade construction for easy cleaning and hygiene compliance.
• Configurable sorting: 3–6 weight grades adjustable to local market classes.
• Simple operation and maintenance with intuitive controls.
• Low power consumption models suitable for continuous operation.
• Compatible rollers: rubber or plastic options to match egg types.

Optional functions

• Inkjet egg printer — print production date, logo or batch code on each egg.
• UV sterilizer & candling light — surface sanitization and internal defect detection before packing.
• Counting & batch packing system — automatic counting, aligning and preparation for uniform packing.

Operation: Egg loading
Eggs can be loaded manually or via an automatic feeder. Place clean, dry eggs pointy-end down on rollers spaced to avoid collisions and ensure stable transfer.

Operation: Egg light inspection (candling)
Candling uses LED or halogen lights to inspect internal quality, detect cracks, blood spots or other defects prior to grading.

Operation: Weight detection
Each egg passes a weighing sensor module; weight is measured with ±1 g precision to determine the sorting path and assigned grade.

Operation: Grading & sorting
After weighing, mechanical diverters route eggs to designated outlets or trays according to configured weight thresholds, enabling 3–6 grade separation and continuous high throughput.

Certifications & use
CE certified. Suitable for chicken, duck, goose and quail eggs; recommended for small farms, poultry processors and egg suppliers focused on efficient, hygienic grading.

caractéristiques / spécifications techniques

• Series: FL-G series (FL-G35, FL-G54, FL-G100, FL-G200).
• Voltage options: 220V / 380V, 50Hz.
• Power range: 200 W – 21 kW depending on model.
• Capacity range: 3,500 – 20,000 eggs/h depending on model.
• Accuracy: weight detection precision ±1 g.
• Sorting grades: configurable 3–6 grades by weight.
• Construction: stainless steel food-grade body; rollers in rubber or plastic.
• Optional modules: inkjet egg printer, UV sterilizer, candling light, counting & batch packing system.
