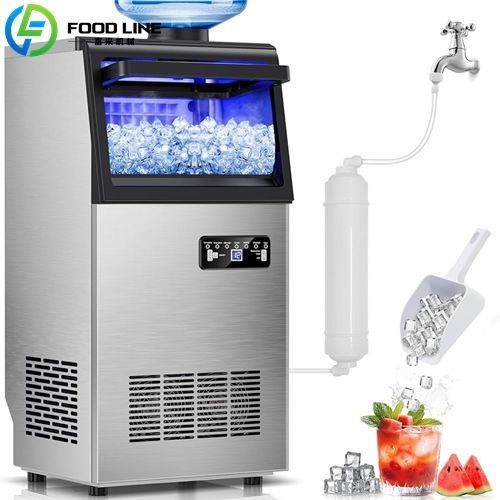

Ice maker

Product overview
The commercial ice maker is a high-capacity production unit intended for continuous operation in commercial and industrial environments. It delivers daily yields from 30 kg to 250 kg depending on the model and is available with air-cooled or water-cooled configurations for larger capacities.

Key features

• Continuous 24/7 operation for high-volume demands
• Fast ice-making cycles to sustain peak usage
• Range of storage and production capacities (30–250 kg/24h)
• Air-cooled and water-cooled options for adaptable installation

Available models — Small capacity

• 30 kg/24h — 210 W — 220V/50Hz — 430×548×750 mm — air cooled
• 40 kg/24h — 230 W — 220V/50Hz — 430×548×750 mm — air cooled
• 60 kg/24h — 320 W — 220V/50Hz — 520×575×920 mm — air cooled

Available models — Medium capacity

• 80 kg/24h — 720 W — 220V/50Hz — 660×655×960 mm — air cooled
• 100 kg/24h — 740 W — 220V/50Hz — 660×655×960 mm — air cooled
• 120 kg/24h — 760 W — 220V/50Hz — 660×655×960 mm — air cooled

Available models — Large capacity

• 150 kg/24h — 850 W — 220V/50Hz — 570×850×1480 mm — air cooled / water cooled
• 200 kg/24h — 900 W — 220V/50Hz — 570×850×1480 mm — air cooled / water cooled
• 250 kg/24h — 1000 W — 220V/50Hz — 770×810×1690 mm — air cooled / water cooled

Applications and usage notes

• Suitable for restaurants, hotels, catering services, food processing and similar high-demand installations
• Choose air-cooled models for standard installations; select water-cooled for improved thermal performance in high-capacity units
• Designed for continuous commercial production; consider local electrical and water supply requirements during installation

Technical specifications

• Capacity range: 30 kg/24h to 250 kg/24h (model dependent)
• Power: 210 W to 1000 W depending on model
• Voltage / Frequency: 220V/50Hz
• Example product dimensions: 430×548×750 mm; 520×575×920 mm; 660×655×960 mm; 570×850×1480 mm; 770×810×1690 mm
• Cooling method: air cooled (standard); air cooled / water cooled options for 150–250 kg/24h models
• Intended for continuous commercial use with emphasis on stable operational performance
