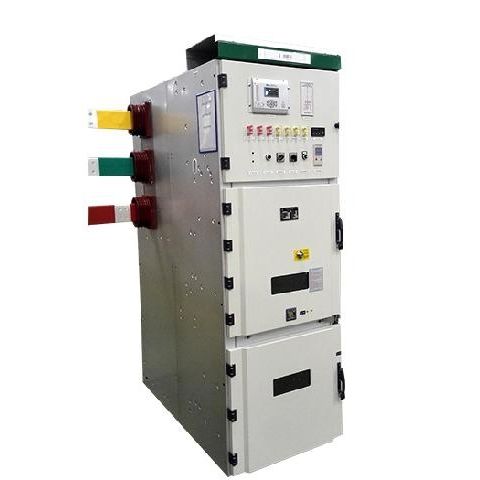

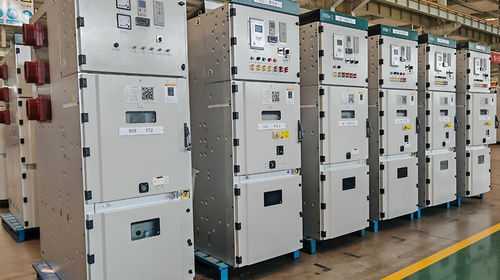

Metal-clad switchgear KYN28A-12

floor-mounteddraw-out

KYN28A-12 metalclad movable switchgear is an intermediated withdrawable switghear product developed upon advanced technology. 　　* The enclosure is made up of galvanized Aluminum plate, after double bending process. 　　* Fully metalclad insolated. 　　* The door of the circuit breaker compartment uses double bending sheet locking device, and IAC class optional. 　　* Well-enclosed enclosure prevents the equipment from objects and insects. 　　* The protection class is IP4X. 　　* Simple and effective inter-lock system prevents the maloperation. 　　* VCB optional for VDS,VS1 and VD4. 　　* Few maintenance for VCB inside the H.V. Compartment and its mechanism. 　　* VCB is easy to be replaced and exchanged. 　　* The panel may be installed against a wall and main-tained from its front, or not against a wall and maintained from both sides. 　　* Secondary wiring is laid in metal-clad channel which has enough space for wiring. 　　* Enough space for cable compartment, which allows to connect multiple cables with installation height more than 700 mm. 　　* Easy to observe the installation status in cable compartment through the front door. 　　* Speed earthing switch is applied to earthing and circuit short connection. 　　* Comply with GB3906, DL/T404 and IEC 62271-200 standard.
