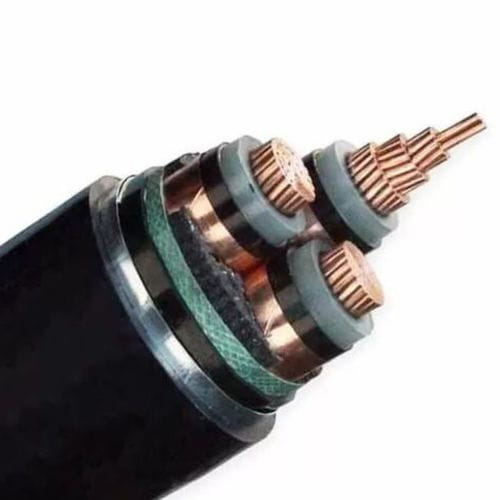

Power cable N2XSEBY
strandedcopperaluminum

power cable
power cable
Add to favorites
Compare this product


Characteristics

Type
power
Configuration
stranded
Core material
copper, aluminum
Applications
industrial
Material of the insulation
XLPE-insulated, PVC-sheathed
Norms
IEC
Nominal voltage

10 kV, 15 kV, 20 kV, 30 kV

Temperature

20 °C
(68 °F)

Description

Medium voltage single core cable is suitable for use in power networks, in fixed installation outdoors in cable ducts or directly in the ground. Cable operational stability is enhanced because of very low dielectric loss factor, excellent insulation property of XLPE and firm bonding with conductor screen and insulation screen of semi-conductive material (extruded in one process), which makes it widely used in transformer stations, electric power plants and industrial plants. 1)Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor 2)Conductor screen: Non-metallic, semi-conducting compound 3)Insulation: Cross-linked polyethylene XLPE 4)Insulation screen: Non-metallic, semi-conducting compound 5)Metallic screen: Copper tape 6)Filler: Non-hygroscopic material 7)Binder tape: Non-hygroscopic material 8)Inner sheath: Polyvinyl chloride PVC 9)Armour: Steel tape 10)Outer sheath: Polyvinyl chloride PVC IEC 60228 Conductors IEC 60502-2 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) - Part 2: Cables for rated voltages of 6 kV(Um=7.2kV) and 30 kV(Um=36kV)
