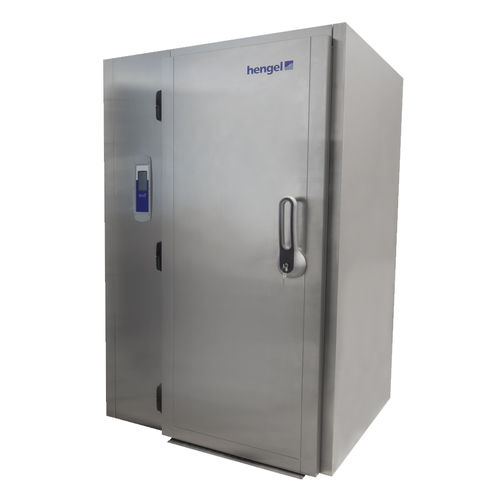

The blast freezer for trolleys is a quick deep-freezing solution (core temperature -18°C) dedicated to production units with important production volumes seeking a high quality of deep-freezing. Designed to hold two trolleys for grids 400x600 mm or one trolley for grids 600x800 mm, it is the ideal equipment to increase productivity by reducing handling operations. Furthermore, the colour touch screen allows production to be tracked, highlighting the historic process.
DEEP-FREEZING CAPACITY of potato puree (ACD40-003 norm):
270 mn cycle - Input temperature +63°C - Core temperature -18°C: 120 kg per cycle
DEEP-FREEZING CAPACITY of meat (thickness of 4 cm):
120 mn cycle - Input temperature +63°C - Core temperature -18°C: 90 kg per cycle
Full stainless steel surface (interior and exterior)
Stainless steel floor and ramp
In standard, hinges are on the right. Other hinges upon request.
Ergonomic and lockable handle
Antipanic internal handle
Ventilated evaporator with auto defrosting system (except during cycle)
Polyurethane foam insulation (CFC free) with 43kg/m³ density, thickness 100 mm
Removable magnetic gasket door without tool
Scraper brushes
R404A remote silent refrigeration unit
Electronic expansion valve
3 fans
Easy access to the technical part with the opening of the blowing door
3,5’’ color touch screen regulation, deep freezing and fast cooling cycle controlled by time or core temperature probe
