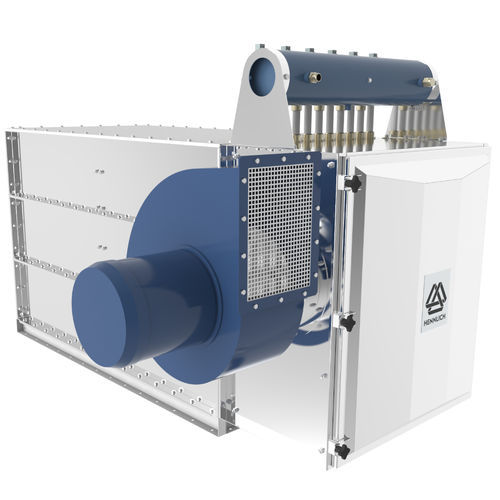

Bag dust collector PHI3000/20

pulse-jet backflowautomatic

• Typical applications — material handling, transport belts, bucket elevators. • Bag dust filters PHI-series are not equipped with a hopper, the dust falls directly back on the conveyor / elevator. installation horizontal filter area: 30,6 m2 fan power: 3.0 kW standard working temperature: -20 °C/+150 °C compressed air consumption 12 Nm3/h approx. weight 454 kg mild steel construction filter medium: 20 pcs of flat filter bag JET-PULS system for the automatic and effective cleaning of the filter bags pulse and safety valves, pressure regulator with manometer differential pressure sensor to signalize the filter bags are clogged ADDITIONAL FEATURES electric control cabinet: 3 x 400 V AC, 50 Hz noise silencer ATEX design design for food and chemical industry non-standard working temperature: -40 OC/+250 oc BENEFITS • easy to install • flexible design • simple to maintain
