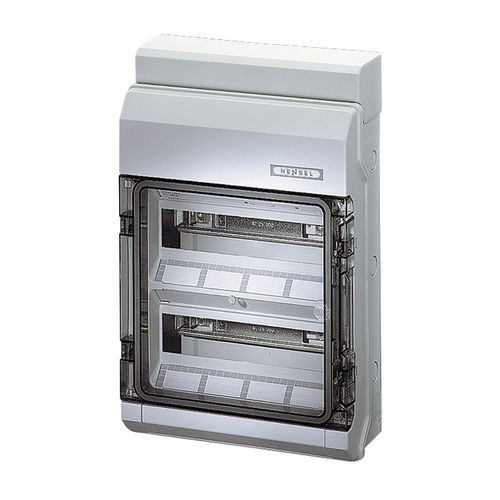

DIN rail electrical enclosure KV 9224
polystyrenecircuit breaker

DIN rail electrical enclosure
DIN rail electrical enclosure
Add to favorites
Compare this product


Characteristics

Configuration
DIN rail
Material
polystyrene
Application
circuit breaker
Width

295 mm
(11.6 in)

Height

458 mm
(18 in)

Depth

129 mm
(5.1 in)

Description

With FIXCONNECT® N- und PE terminal For installation of units up to In = 63 A for mounting on DIN rail, top hat profile 35 mm With 2x 12 modules (18 mm) Type of cover: Door Transparent cover: Yes Width in modules: 12 modules Number of rows: 2 Delivered accessories: Sealing plug, DIN rail(s), blanking strips, labelling strips, cable entry cover IP degree of protection: IP65 DIN rail spacing: 125 mm Cover cutouts: Open During installation, the climatic effects on the installed equipment must be taken into account, for example high and low ambient temperatures and solar radiation. To reduce the formation of condensed water, see technical information: Formation of condensed water and retaliatory actions. Application area: Indoor installation Maximum ambient temperature 24 h: 35 °C Ambient temperature: -5 °C up to +40 °C Relative humidity: ≤ 50 % at 40 °C, ≤ 100 % at 25 °C Material: Polystyrene Glow wire test according to IEC 60695-2-11: 750 °C UL 94: V-2 Temperature resistance: -25 °C up to +80 °C Halogen-free: Yes Silicone-free: Yes Net weight: 2.695 kg Colour: Grey, similar to RAL 7035 conforming to the standards: EN 60670-1, DIN EN 60670-24
