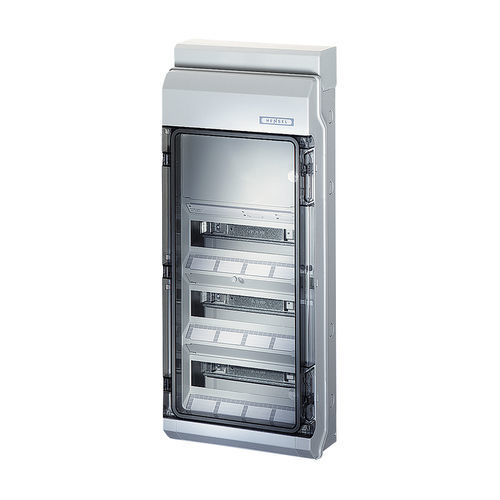

Wall-mounted electrical enclosure KV 9440

DIN railpolystyrenepower distribution

Without terminals For installation of units up to In = 63 A for mounting on DIN rail, top hat profile 35 mm With 3x 12 modules (18 mm) With continuous DIN rail for mounting terminal blocks or operator-independent devices with high space requirements. Type of cover: Door Transparent cover: Yes Width in modules: 12 modules Number of rows: 3 Delivered accessories: Sealing plug, DIN rail(s), blanking strips, labelling strips, cable entry cover IP degree of protection: IP65 DIN rail spacing: 125 mm Cover cutouts: Open With additional space for electrical devices not to be manually actuated: Yes During installation, the climatic effects on the installed equipment must be taken into account, for example high and low ambient temperatures and solar radiation. To reduce the formation of condensed water, see technical information: Formation of condensed water and retaliatory actions. Application area: Indoor installation Maximum ambient temperature 24 h: 35 °C Ambient temperature: -5 °C up to +40 °C Relative humidity: ≤ 50 % at 40 °C, ≤ 100 % at 25 °C Material: Polystyrene Glow wire test according to IEC 60695-2-11: 750 °C UL 94: V-2 Temperature resistance: -25 °C up to +80 °C Halogen-free: Yes Silicone-free: Yes Colour: Grey, similar to RAL 7035 conforming to the standards: EN 60670-1, DIN EN 60670-24
