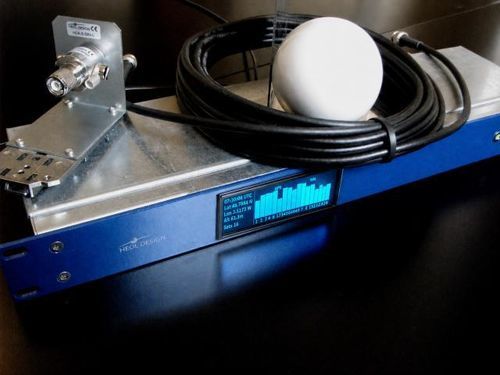

NTP time server T109

SSHHTTPSSNMP

T109 GNSS NTP/NTS Server — Security and Precision, with Optional OSNMA
The T109 provides high-precision, secure time distribution for critical networks using GNSS references. Optional OSNMA anti-spoofing ensures cryptographic validation of Galileo signals, while multi-constellation reception maintains availability.

OSNMA

• OSNMA: Authenticating Galileo Signals

OSNMA (Open Service Navigation Message Authentication) from ESA delivers cryptographic verification of navigation data to protect against spoofing and ensure integrity of received time signals.

Why Choose the T109?

• Anti-spoofing: cryptographic validation of Galileo signals (OSNMA).
• Redundancy: multi-constellation reception (Galileo + GPS) to avoid reliance on a single system.
• Precision: microsecond-level synchronization for time-sensitive applications.
• Performance: up to 10,000 NTP/NTS requests per second.
• Compliance: designed to meet security requirements for critical infrastructure.

Network Protocol Security

• NTS (Network Time Security): encryption and authentication of NTP exchanges to protect against spoofing and interception.
• HTTPS: secure access to the web administration interface.
• SNMPv3: industrial-grade configuration and monitoring.

Network Connectivity

• 4 Ethernet LAN ports (Lan1 to Lan4) — 1 Gb each.
• 2 SFP ports (Sfp1, Sfp2) — 2.5 GbE.
• 1 Ethernet WAN port — 1 Gb.

Each port supports independent network configuration (subnet, enable/disable, dedicated MAC address).

Other Features

• HTTP/HTTPS web interface available in English, French, and Spanish.
• Simple integration with existing NTP infrastructures.
• OLED graphic display for status and parameter monitoring.
• SSH, syslog, SNMPv3, DHCP.
• OCXO or Rubidium oscillator option.

Technical specifications

• Model: T109
• Function: GNSS-based NTP/NTS time server with optional OSNMA anti-spoofing
• GNSS support: Galileo (with OSNMA option) and GPS (multi-constellation reception)
• Authentication: OSNMA (Galileo) optional; NTS for NTP exchanges
• Time accuracy: microsecond-level synchronization
• Throughput: up to 10,000 NTP/NTS requests per second
• Network ports: 4 × 1 Gb Ethernet LAN, 2 × SFP (2.5 GbE), 1 × 1 Gb Ethernet WAN
• Independent configuration per network port (subnet, enable/disable, dedicated MAC)
• Management & security: HTTPS, SSH, SNMPv3, syslog
• Web interface languages: English, French, Spanish
• Display: OLED graphic display for status and parameters
• Integration: compatible with existing NTP infrastructures
• Oscillator options: OCXO or Rubidium
