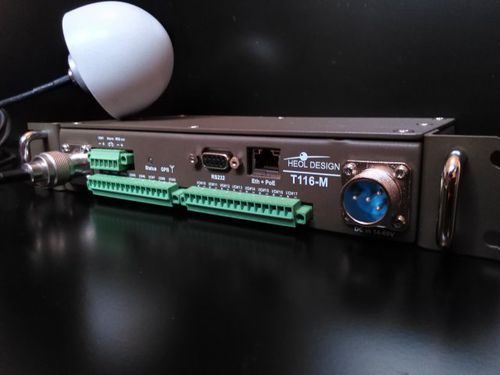

GPS time server T116

GNSSIRIGBBeiDou

The time-stamped data can be monitored and uploaded by RS232, SNMP, or through the T116 web server. Data include index, channel number, UTC time, GPS position. Numeric filters on the event inputs can be also configured : choice of the edge detection, programmable delay, sample and hold, etc...) The T116-FO time server is a time server, synchronized to GPS, providing the following functions : - NTP/SNTP server, broadcast and unicast modes. - IRIG modulated (B123) and un-modulated (B003) generator, available on BNC connector, optical port (SC connector), or isolated output. Coupled with the T047 optical/IRIG transceiver, you will have the ability to synchronize distant IRIG clients, linked to T116-FO server by an optical fiber (up to 2 km). - Programmable pulse generator, (up to 6 isolated, high current capacity outputs). Outputs are available on fast static relay, 5V, or differential RS422. - LCD display with timing and status information. - Daylight saving time management (winter/summer time), selectable for NTP, IRIG, LCD display. - In option, internal RTC with sub-millisecond accuracy, powered by lithium battery, to provide time without GPS reference. - The recorder functions timestamps external events (TTL input, or other signal levels), on a rising or falling edge, and can record (in Flash memory) up to 500 000 successive events on the 20 channels. The time-stamp resolution is 10 nanoseconds, and events are displayed in real time on the web server. The data file containing timestamps/channel information can be downloaded later through the web server.
