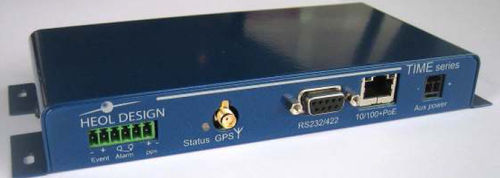

GPS time server T103

NMEAfor mobile applicationsPPS

NTP server or GPS clock is utilized for static or mobile applications permitting high precision even on moving vehicles . It is created to give precise timing through a Ethernet link for synchronization and measurement operations. The T103 demands less than 1 minute to power-up to be fully operational and useful. It has storage temperature of -40 / +70°C and it has humidity of 90% non-condensing and it weighs 1,85 Kg. A 2500V isolated event inputs allows you to time-stamp external events with very high accuracy (±100 nano-seconds , refer to UTC atomic clock). The TimeStamp information is report through RS232/RS422, SNMP trap, Email or Broadcast frame). A second event input is available in option. In option, a battery powered internal RTC can provide timing information if no GPS satellites are available at power-up (antenna disconnected or hidden inside a building). Alarm relay is available, for driving your external systems in case of failure of the T103. A highly accurate pps (TOP signal) signal (±100ns) is available on SUB-D9 connector (pin 8 for Linux applications) or I/O connector (polarity, period, length, and delay compensation are configurable by user). It is also available with optional 1500V isolated static relay (in this case Alarm relay is not available). A RS232 or RS422 serial port can be accessed for remote control and monitoring (protocol output : TSIP or NMEA, selectable through web server). Historic data can be backed-up to an EEPROM (up to 8000 status records). The Power On Ethernet enables installation of the T103 without the need for additional cables to provide power.
